Description

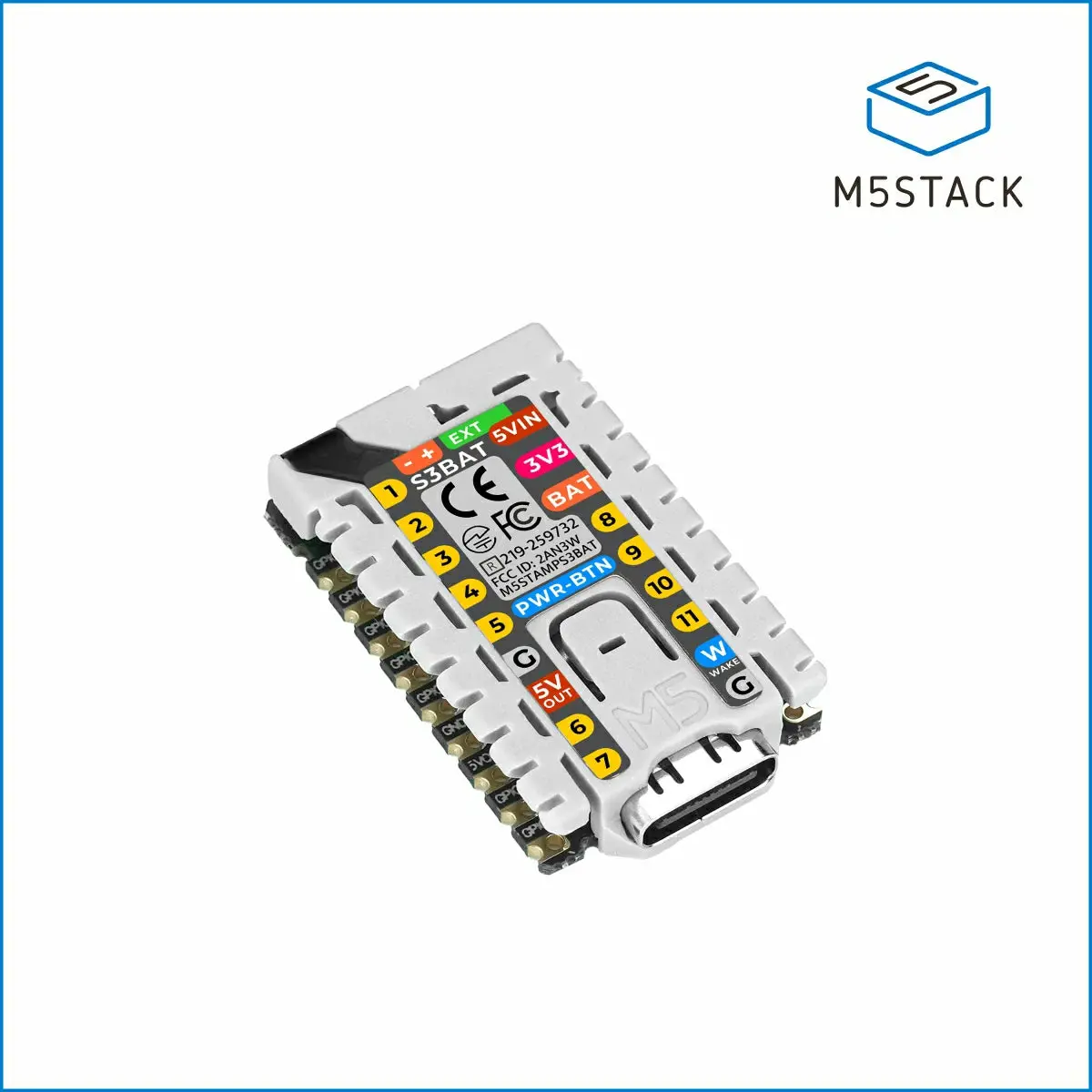

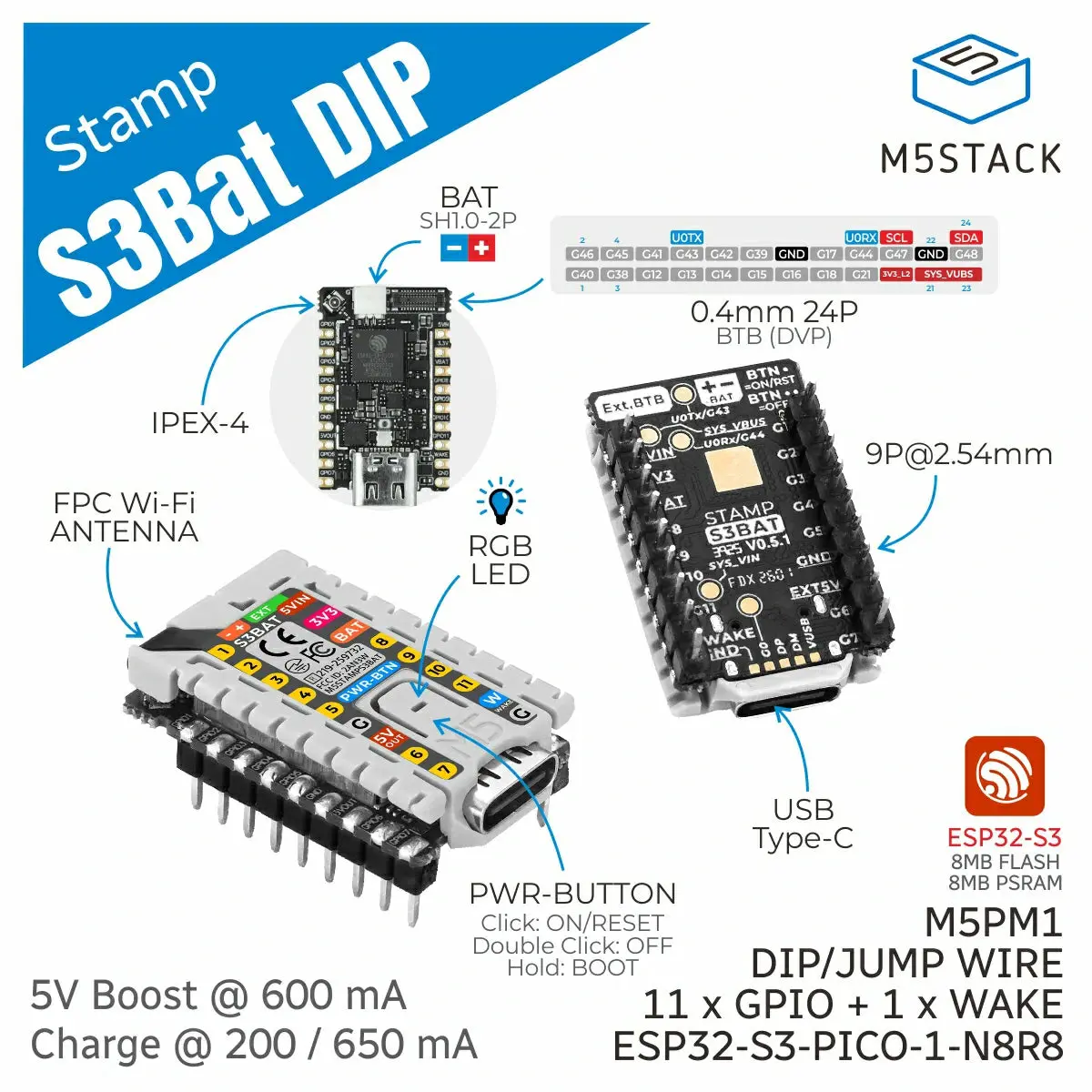

Stamp-S3Bat DIP is an embedded core module with integrated power management. It features the ESP32-S3-PICO-1-N8R8 main controller, supporting 2.4GHz Wi-Fi with built-in 8MB Flash and 8MB PSRAM. The module leads out 11 GPIOs and 1 wake-up IO, equipped with a 24P BTB connector (supporting DVP interface). An onboard battery power interface is provided for connecting an external 3.7V lithium battery. It integrates the M5MP1 multi-stage power control design, supporting power input/output control, lithium battery charging control, and status detection for input voltage and battery voltage. It also supports external low-power wake-up; after the main controller enters low-power sleep mode, the power can be woken up via the external wake-up IO. Featuring a programmable RGB LED, the Stamp-S3Bat DIP version comes with pre-soldered 2.54mm standard pitch headers, allowing integration into applications via PCB insertion, breadboard connection, or Dupont cables to help developers quickly build IoT applications.
Features
- Integrated ESP32-S3-PICO-1-N8R8 controller
- 8MB Flash and 8MB PSRAM
- 24P BTB connector (supporting DVP interface)
- M5PM1 low-power power management
- 11 x GPIO leads + 1x Wake-up IO
- 1x RGB LED
- Power Supply:
- 3.7V Battery power
- USB Type-C / DC 5V
- 2.54mm standard pitch headers
Includes
- 1 x Stamp-S3Bat DIP
- 1 x SH1.0 battery connection cable
Applications
- IoT project development
Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32-S3-PICO-1-N8R8 @ Dual-core Xtensa LX7 processor, frequency up to 240MHz |
| Flash | 8MB |
| PSRAM | 8MB |
| Wi-Fi | 2.4 GHz Wi-Fi |
| Input Power | 3.7V Battery / USB Type-C / DC 5V |
| RGB LED | 1x WS2812 |
| Battery Interface | SH1.0 |
| Pad GPIO Leads | 11x GPIO (G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11) + 1x Wake-up IO (PY_G4_WAKE) |
| BTB Interface GPIO Leads | 19x GPIO (G40/G38/G12/G13/G14/G15/G16/G18/G21/G46/G45/G41/G43/G42/G39/G17/G44/G47/G48) |
| BTB Socket | BTB0.408-24PLBDR-M41, 12*2P-FPC Direct Insertion – Black, 0.4mm pitch |
| Antenna Socket | IPEX-4 |
| Battery Connector | SH1.0-2P |
| Antenna Type | FPC Antenna |
| Operating Temp | 0 ~ 40°C |
| Power Consumption | Sleep Mode: 4.2V@13.43uA Standby Mode: 4.2V@955.36uA Light Load Mode: 4.2V@26.83mA Full Load Mode: 4.2V@27.49mA |
| Product Size | 29.8 x 18.0 x 12.0mm |
| Product Weight | 4.5g |
| Package Size | 44.0 x 32.5 x 17.0mm |
| Gross Weight | 9.4g |
