Description

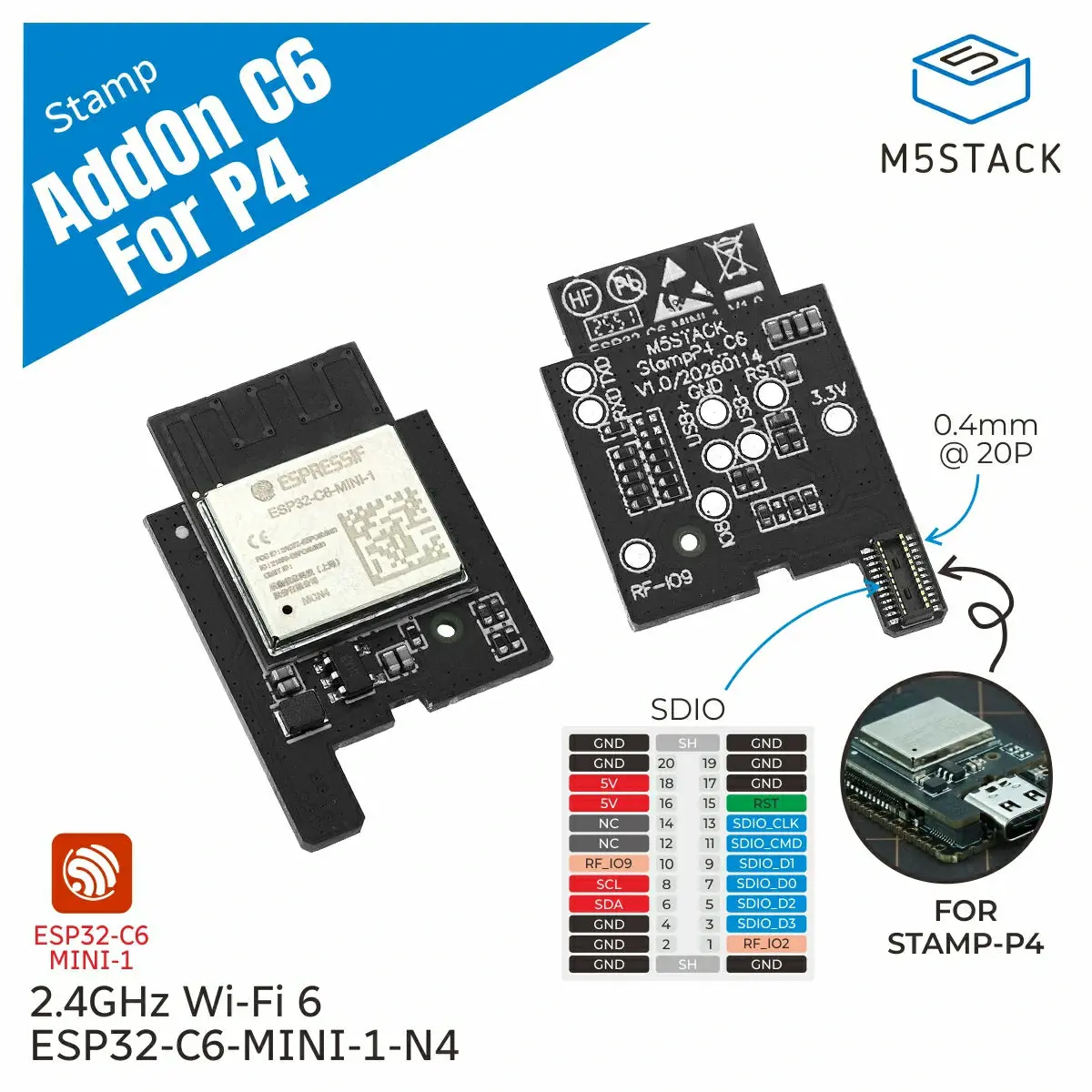

Stamp-AddOn C6 For P4 is a Wi-Fi expansion module based on the ESP32-C6-MINI-1-N4, specifically designed to extend the wireless communication capabilities of the ESP32-P4 series modules, supporting 2.4GHz Wi-Fi 6. The module communicates at high speed with Stamp-P4 via the onboard SDIO interface, quickly expanding high-performance wireless connectivity. It is suitable for scenarios such as smart security gateways, industrial HMI interactive terminals, and complex edge AI nodes, helping developers efficiently build embedded products with full connectivity capabilities.

Features

• ESP32-C6-MINI-1-N4 core controller
  • 4MB Flash
  • 2.4GHz Wi-Fi 6
• 0.4mm@20P SDIO onboard interface, adapted for Stamp-P4
• Development Platform
  • UiFlow2
  • Arduino IDE

Includes

• 1 x Stamp-AddOn C6 For P4

Applications

• Smart security gateway
• Industrial HMI interactive terminal
• Complex edge AI node

Specifications

Specification	Parameter
SoC	ESP32-C6FH4 (RISC-V 32-bit single-core processor 160 MHz + RISC-V 32-bit single-core low-power co-processor 20 MHz)
Flash	4MB
DC-DC	SY8089AAAC
Input Voltage	DC 5V
Module Resource Interface	SDIO
SDIO Interface Specification	HC-PBB40C-20DP-0.4V-02
Adapted Device	Stamp-P4
Wireless Protocol	2.4GHz Wi-Fi 6
Operating Temperature	0 ~ 40°C
Product Size	27.0 x 18.0 x 4.0mm
Product Weight	1.6g
Package Size	138.0 x 93.0 x 6.0mm
Gross Weight	5.7g

Installation Diagram
