M5Stamp S3A with 1.27mm Pin Header

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

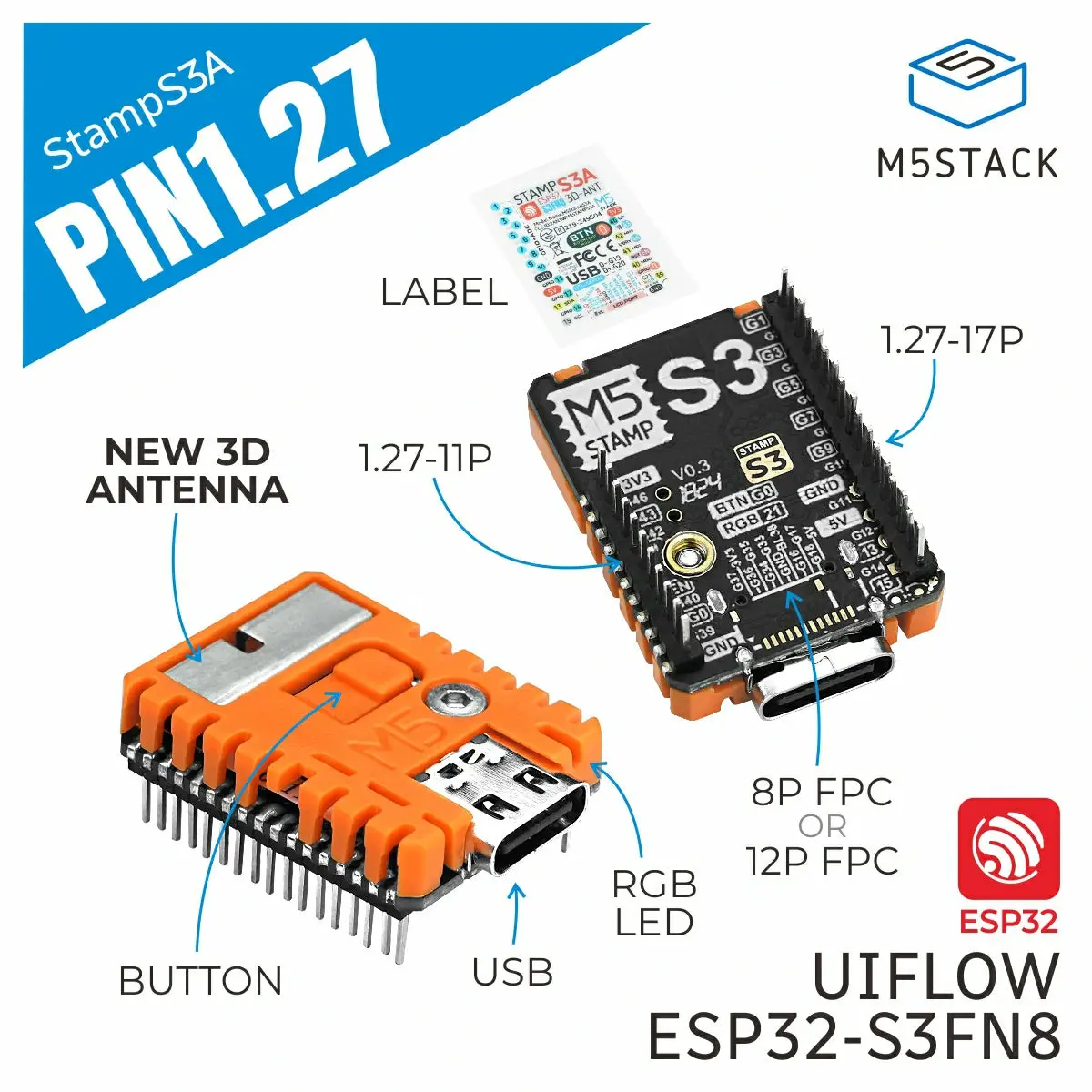

Stamp-S3A PIN1.27 is a highly-integrated embedded module based on the Espressif ESP32-S3FN8. It features a 240 MHz Xtensa® 32-bit LX7 dual-core processor, integrates 8 MB Flash, a programmable RGB LED, and a user button. The deeply optimized 3D antenna design delivers stronger wireless performance. Twenty-three GPIOs are broken out and a 1.27 mm-pitch SMT pin header is pre-soldered, providing an even smaller footprint for high-density PCB integration and enabling developers to build compact applications quickly.

Features

• ESP32-S3FN8 (2.4 GHz Wi-Fi)
• 1.27 mm-pitch SMT interface
• 23 multifunctional GPIOs
• 8 MB Flash
• Rich I/O breakout supporting multiple application forms (SMT, DIP, fly-wire)
• Integrated programmable RGB LED and button
• Development Platform
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x Stamp-S3A PIN1.27
• 1 x Pin Sticker

Applications

Specifications

Specification	Parameter
SoC	ESP32-S3FN8
DC-DC	MUN3CAD01-SC
Flash	8 MB
Input Voltage	DC 5 V
HMI	Programmable physical button × 1, programmable RGB LED (WS2812B-2020) × 1
Antenna Type	2.4 GHz 3D antenna
Module Resource I/F	Touch Sensor, SD/SDIO/MMC Host Ctrl, SPI, SDIO/SPI Slave Ctrl, EMAC, Motor PWM, LED PWM, UART, I²C, I²S, GPIO, Pulse Counter
IO Interfaces × 23	G0/G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11/G12/G13/ G14/G15/G39/G40/G41/G42/G43/G44/G46
IO Pitch	1.27 mm
LCD FPC Pitch	0.5 mm @ 12 P or 8 P
Operating Temp.	0 ~ 40 °C
Product Size	26.0 × 18.0 × 4.7 mm
Product Weight	3.1 g
Package Size	74.0 × 48.0 × 13.0 mm
Gross Weight	7.6 g

Product Comparison

Product Comparison Item	Stamp-S3A PIN1.27	Stamp-S3 PIN1.27
RGB LED Control Logic	RGB LED power is multiplexed with the reserved screen FPC bus backlight	Powered as soon as power is applied
Antenna Design	Optimized antenna design with better signal reception	Conventional antenna design
Module Boot Button	Improved tactile feel; 4.0 × 3.0 × 2.0 mm button	2.6 × 1.6 × 0.55 mm button
Power Consumption	Optimized for lower power consumption	Standard design
