End-of-Life M5Stamp ESP32-S3 Microcontroller Module

Description

Product Status Notice This product is EOL (End of Life). Please order the new version: Stamp-S3A /* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

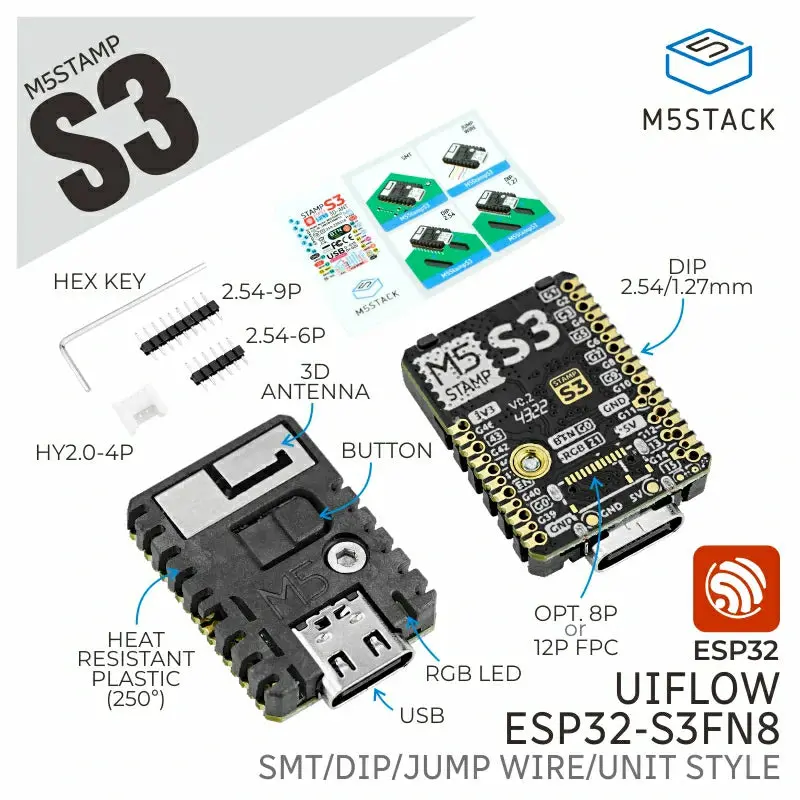

Stamp-S3 is a highly integrated embedded core module based on the Espressif ESP32-S3FN8 SoC with 8 MB SPI flash. It features a high-performance 32-bit Xtensa LX7 dual-core processor running at up to 240 MHz and integrates a 5 V-to-3.3 V power circuit, an RGB status LED, and a programmable button.
The module exposes 23 GPIO pins of the ESP32-S3 on both 1.27 mm and 2.54 mm pitch headers, supporting multiple mounting options such as SMT, DIP male header, DIP female header, and fly-wire.
With its compact size, powerful performance, rich IO resources, and low-power consumption, the module is ideal for embedded IoT controller applications.

Features

• ESP32-S3FN8 (2.4 GHz Wi-Fi)
• Minimum system board
• Multiple IO breakout options (SMT, DIP, fly-wire)
• Integrated programmable RGB LED and button
• Supports UiFlow graphical programming
• Development Platform
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x Stamp-S3
• 1 x HY2.0-4P Terminal
• 1 x 2.54-9P Male Header
• 1 x 2.54-6P Male Header
• 1 x Hex Key L-Shape
• 1 x User Manual

Applications

Specifications

Specification	Parameter
SoC	ESP32-S3FN8@Xtensa LX7 dual-core, main frequency up to 240MHz
DC-DC	MUN3CAD01-SC
Flash	8MB
Wi-Fi	2.4 GHz Wi-Fi
Input Voltage	5V
Power Consumption	Sleep mode: – USB Type-C power: DC 5 V @ 400.67 µA – VIN_5V power: DC 5 V @ 310.89 µA; Standby mode: – USB Type-C power: DC 5 V @ 33.04 mA; – VIN_5V power: DC 5 V @ 33.56 mA
Human Interface	Programmable physical button × 1, programmable RGB LED (WS2812B-2020) × 1
Antenna Type	2.4 G 3D antenna
Peripheral Interface	Touch sensor, SD/SDIO/MMC host controller, SPI, SDIO/SPI slave controller, EMAC, Motor PWM, LED PWM, UART, I2C, I2S, GPIO, Pulse Counter
IO Ports × 23	G0/G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11/G12/G13/G14/G15/G39/G40/G41/G42/G43/G44/G46
Connection Method	SMT/DIP (2.54 mm & 1.27 mm pitch) / Fly-wire
IO Pitch	2.54 mm & 1.27 mm
LCD FPC Pitch	0.5 mm @ 12-pin or 8-pin
Operating Temp.	0 ~ 40 °C
Product Size	24.0 x 18.0 x 4.7 mm
Product Weight	3.0g
Package Size	138.0 x 93.0 x 10.5 mm
Gross Weight	7.5 g
