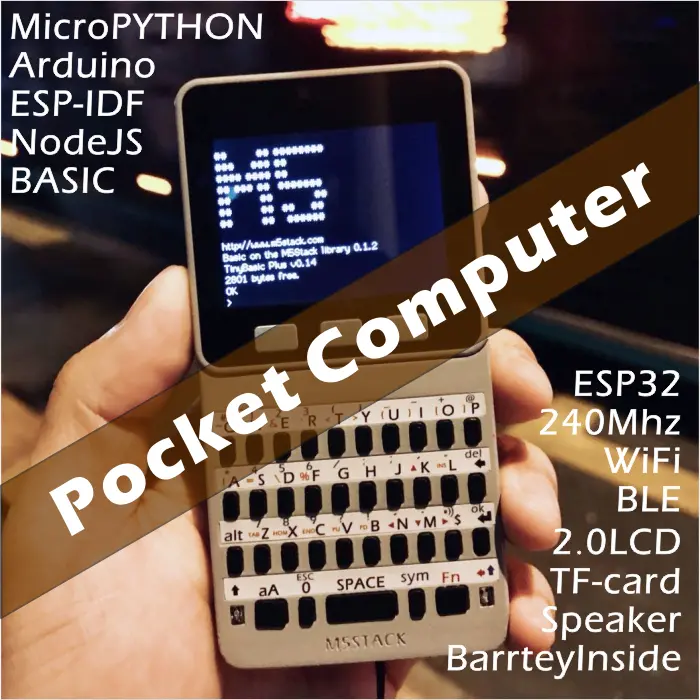

M5Stack Faces Kit – Compact Pocket Computer with Keyboard, Gaming, and Calculator Functions

Description

Product Status Notice This product is EOL (End of Life).

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

Faces Kit is a collection of functional panels. The kit includes three commonly used panels: “GameBoy (gaming keyboard)”, “Calculator (numeric keypad)”, and “QWERTY (full keyboard)”. A MEGA328 processor is integrated inside, working in slave mode via the I2C communication protocol (0x08). Choose any of these three panels as needed to enable human–machine interaction between the user and M5Core.

Features

• ESP32-based development
• Built-in gyroscope, accelerometer, and magnetometer
• Integrated speaker, buttons, LCD screen, and 1 × power/reset button
• TF-card slot (expandable up to 16 GB)
• M5-Bus female connector
• Magnetic charging design
• Built-in lithium battery
• Extensible pins and interfaces
• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 × Gray
• 1 × FACES Charging Base
• 1 × FACES Lanyard
• 1 × Panel Sticker
• 3 × FACES Keyboards (GameBoy, Calculator, QWERTY)
• 8 × Dupont Cables
• 6 × M3 × 12 mm Screws
• 1 × Hex Key L-Shape
• 1 × USB Type-C Cable (100 cm)

Applications

• Handheld game console
• Calculator
• Data-entry peripheral
• IoT controller

Specifications

Main Control Resources	Parameter
SoC	ESP32-D0WDQ6@Dual-core processor, Main frequency 240MHz
DMIPS	600
SRAM	520KB
Flash	16MB (Old version 4MB)
Wi-Fi	2.4 GHz Wi-Fi
Input Voltage	5V@500mA
Host Interface	USB Type-C x 1, GROVE (I2C+I/O+UART) x 1
Core Base Interface	PIN (G1, G2, G3, G16, G17, G18, G19, G21, G22, G23, G25, G26, G35, G36)
IPS Screen	2 inch, 320×240 Colorful TFT LCD, ILI9342C, Max brightness 853nit
Speaker	1W-0928
Buttons	Custom buttons x 3
Antenna	2.4G 3D antenna
Lithium Battery	600mAh@3.7V
MEMS	MPU6886+BMM150
2.4G Antenna	Proant 440
Operating Temperature	0 ~ 60°C
Case Material	Plastic (PC)
Product Size	58.2 x 54.2 x 18.7mm
Product Weight	94.0g
Package Size	120.0 x 85.0 x 65.0mm
Gross Weight	264.0g
