ESP32 IoT Starter Kit – Entry-Level Development Board for Smart Projects

Description

Product Status Notice This product is EOL (End of Life). Please order the new version: ESP32 Basic Core IoT Development Kit V2.7 /* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

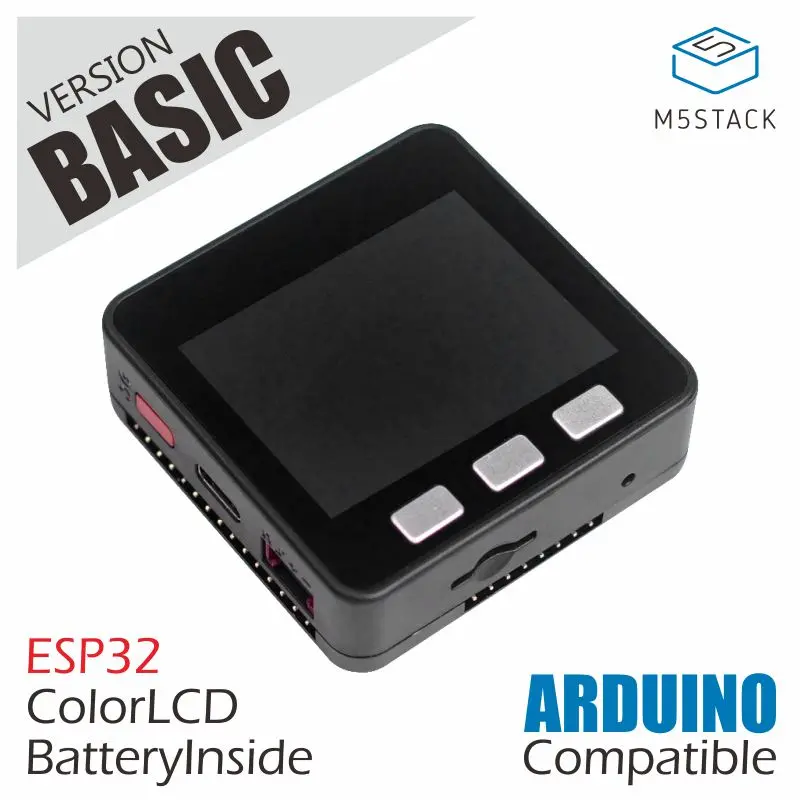

Basic is a highly cost-effective entry-level product in the M5Stack development-kit series, making it an ideal choice for beginners. Equipped with a wealth of sample resources, it features the ESP32 IoT SoC with integrated Wi-Fi and 16MB SPI flash. Thanks to its dual-core, low-power design, it delivers excellent performance across a wide range of applications. The industrial-grade enclosure offers a refined appearance and stable operation, breaking the traditional limitation of development boards being used only for validation and learning. With rapid prototyping and a very low entry threshold, developers can quickly achieve product-level results and accelerate the process from development to commercialization. A powerful hardware expansion ecosystem composed of stackable modules and extensible units enables fast construction and verification of IoT products.

The Basic adopts a practical and ingenious structural design, stacked in two detachable parts. The upper part integrates the PCB and core components, while the lower part contains a lithium battery, M5-Bus female connector and expansion pins. This layout is convenient for operation and subsequent functional expansion.

Features

• ESP32 based
• 2.0-inch IPS display panel, speaker, 3 × custom buttons
• Built-in lithium battery with PMU, Type-C interface
• 16MB Flash
• 15 × broken-out IO pins
• Integrated full-color HD IPS display and multiple peripherals
• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 × Basic
• 10 × Dupont Jumper Wires
• 1 × USB Type-C Cable (20 cm)
• 1 × User Manual
• 1 × Sticker

Applications

• IoT controller
• STEM education
• DIY projects
• Smart-home devices

Specifications

Specification	Parameter
SoC	ESP32-D0WDQ6-V3@Dual-core processor, 240MHz
DMIPS	600
SRAM	520KB
Flash	16MB
Wi-Fi	2.4 GHz Wi-Fi
Input Voltage	5V@500 mA
Host Interface	USB Type-C x 1，HY2.0-4P (I2C+I/O+UART) x 1
Core Base Pins	G21, G22, G23, G19, G18, G3, G1, G16, G17, G2, G5, G25, G26, G35, G36
IPS Display	2-inch, 320 × 240 Color TFT LCD, ILI9342C, max brightness 853 nit
Speaker	1W-0928
Buttons	Custom buttons × 3
Battery	110 mAh @ 3.7 V
Antenna	2.4 G 3D antenna
Operating Temp.	0 ~ 60 °C
Case Material	Plastic (PC)
Product Size	54.0 × 54.0 × 17.0 mm
Product Weight	49.5 g
Package Size	94.8 × 65.4 × 25.3 mm
Gross Weight	89.5 g
