EOL NEO-M8N GPS Module with Built-in Antenna

Description

Product Status Notice This product is EOL (End of Life). Please order the new version: Module GPS v2.1 /* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

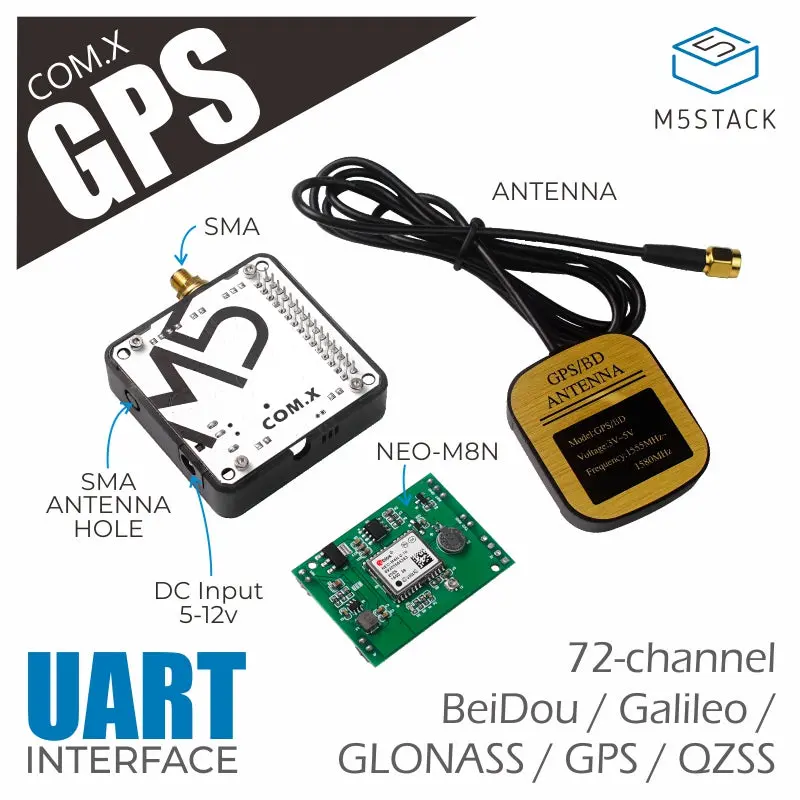

Module COMX GPS is a satellite positioning module in the M5Stack stackable module series. It is developed based on the NEO-M8N module and equipped with an active antenna. The NEO-M8N features a high reception sensitivity of -167dBm while maintaining low system power consumption. The NEO-M8N integrates a 72-channel u-blox M8 GNSS engine, supporting multiple GNSS systems (BeiDou, Galileo, GLONASS, GPS / QZSS), allowing simultaneous reception of data from 3 GNSS systems. The module integrates programmable FLASH internally, enabling firmware upgrades. This module has minimal static drift, low power consumption, and a compact size, making it ideal for applications in vehicles, PDAs, handheld devices, vehicle monitoring, mobile phones, cameras, and other mobile positioning systems. The M5Core communicates with the Module COMX GPS via the UART protocol, and the UART communication pins can be set using the DIP switch inside the module.

Compatibility When used with the Fire main control, due to PSRAM pin conflicts (G16/G17), please switch the module base DIP switch pins to TX(G0/G13), RX(G5/G15) during use.

Features

• Antenna Type: External active antenna
• External Antenna Port: SMA
• Can simultaneously receive data from 3 GNSS systems
• Horizontal Position Accuracy: Minimum 2.5m
• GPS Module (NEO-M8N) with built-in flash memory, firmware upgradeable via u-center-just-for-Windows
• Supported Protocols: NMEA, UBX, RTCM
• Industry-leading -167dBm sensitivity
• Backward compatible with NEO‑7 and NEO‑6 series
• UART Communication Interface:
  • Default Baud Rate: 9600bps
  • Data Bits: 8 bits
  • Start Bit: 1 bit
  • Stop Bit: 1 bit
  • Parity Bit: None

Includes

• 1 x Module COMX GPS
• 1 x External Antenna (Length: 1 m)

Applications

• GPS-based logistics tracking management
• Autonomous vehicle positioning

Specifications

Specification	Parameter
Receiver Type	GPS:L1C/A SBAS:L1C/A QZSS:L1C/A GLONASS:L1OF BeiDou:B1 Galileo:E1B/C
Time to First Fix	Cold start:26S Hot start:1.5S
Sensitivity	-167 dBm
Update Rate	Separate GNSS 10Hz, Parallel GNSS 5Hz
Velocity Accuracy	0.05m/s
Maximum Speed	500m/s
Operating Temperature	-40 ~ 80°C
DC Interface Spec	5.5mm
Net Weight	28g
Gross Weight	99g
Product Size	54 x 54 x 13mm
Package Size	165 x 60 x 36mm
