EOL Air Quality Monitoring Kit with M5Stamp S3, SEN55 Particulate Sensor, and SCD40 CO₂ Sensor

Description

Product Status Notice This product is EOL (End of Life). Please order the new version: Air Quality v1.1 /* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

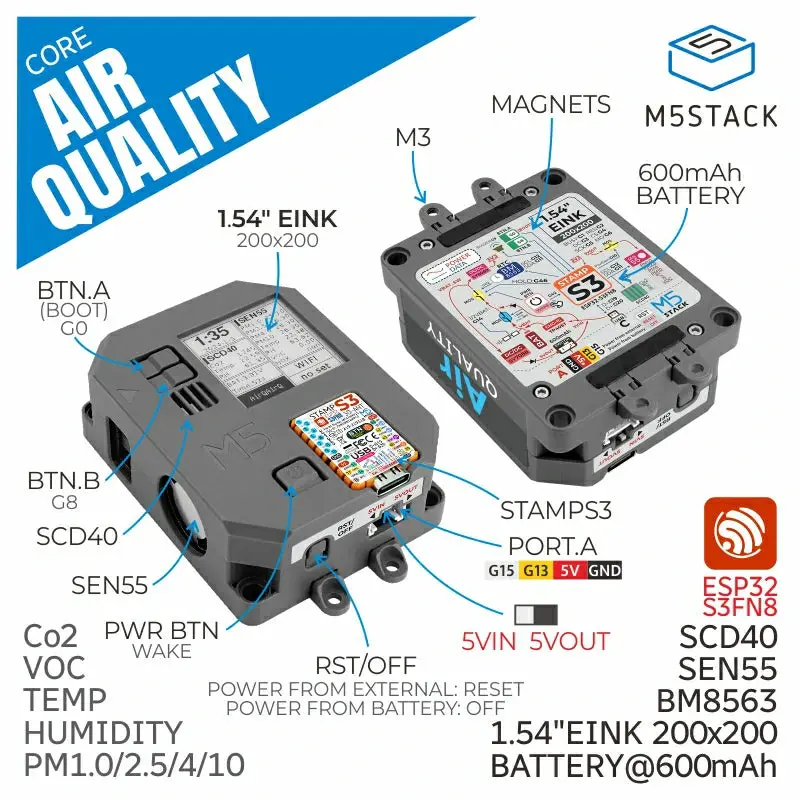

Air Quality is a low-power, all-in-one air-quality monitoring device. It integrates the multifunctional air-quality sensor SEN55 and the CO₂ sensor SCD40, enabling the measurement of PM1.0, PM2.5, PM4, PM10 particulate matter, temperature, humidity, VOC, and CO₂ concentration. Powered by the StampS3 MCU with 8MB Flash, it features a 1.54-inch E-Ink display (200 × 200) that retains the last image even when power is off. A built-in 600 mAh battery together with an RTC low-power management circuit supports sleep and timer wake-up functions.

The factory firmware uploads data to M5’s EZDATA cloud platform and automatically generates a monitoring page, allowing convenient remote access for users. The bottom of the device provides LEGO mounting holes, magnets, and four detachable mounting ears for versatile installation. It is ideal for long-term online monitoring in environments such as homes, schools, industrial sites, and medical facilities.

Features

• SEN55 and SCD40 sensors
• 1.54-inch E-Ink display (200 × 200 px)
• Built-in 600 mAh battery
• Grove interface
• EZDATA cloud access
• RTC timer wake-up
• Development Platform
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x Air Quality
• 1 x User Manual

Applications

• Home environment monitoring
• Industrial automation
• Medical facilities
• Research laboratories
• Remote monitoring
• HVAC system optimization
• Construction sites

Specifications

Specification	Parameter
Module Model	StampS3
SoC	ESP32S3FN8@Dual-core Xtensa LX7, 240MHz
USB	USB OTG, USB Serial/JTAG
Flash	8MB
Wi-Fi	2.4 GHz Wi-Fi
Display	GDEY0154D67 @ 1.54″
Resolution	200 × 200 px
SEN55	I2C address: 0x69
SCD40	I2C address: 0x62
Environmental Measurements	PM1.0, PM2.5, PM4, PM10, temperature, humidity, VOC, CO₂ concentration
RTC	RTC8563
Battery	600 mAh @ 3.7 V
Buttons	Button A (G0), Button B (G8), power button, reset/power-off
Grove Interface	HY2.0-4P
Buzzer	On-board passive buzzer
Mounting	LEGO holes, magnet, 4 x M3 detachable mounting ears
Operating Temperature	0 ~ 40 °C
Product Size	72.0 x 56.0 x 24.1 mm
Product Weight	91.9 g
Package Size	100.8 x 74.3 x 30.5 mm
Gross Weight	120.0 g
