Description

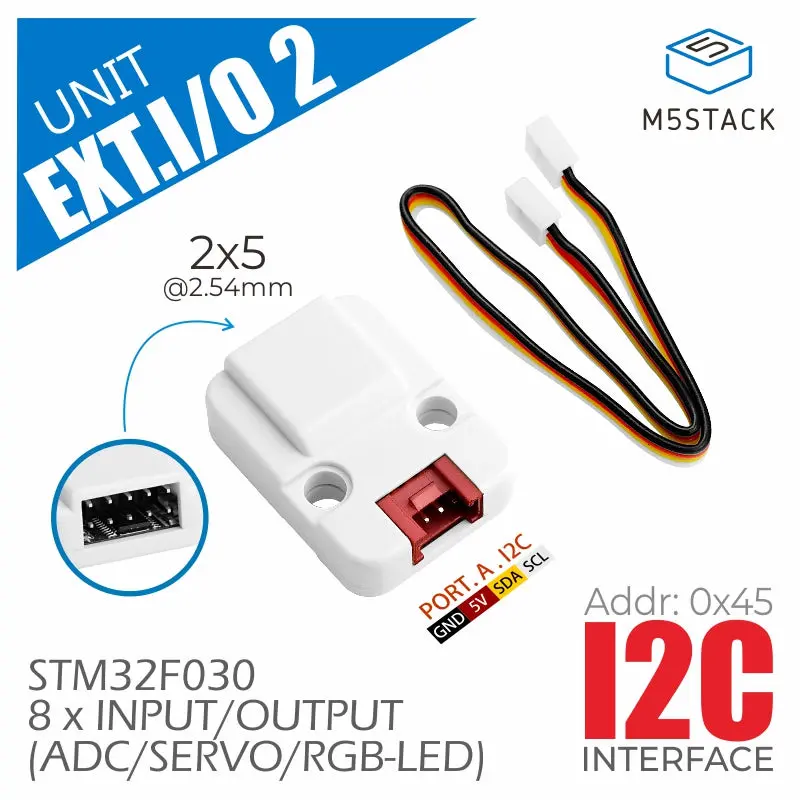

Unit EXT.IO2 is an IO expansion unit developed based on the STM32F030 main controller, using an I2C communication interface, providing 8-channel IO expansion. Each IO channel supports independent configuration of digital input/output, ADC, SERVO control, and RGB LED control modes. It supports configuring the device’s I2C address, which means users can mount multiple Unit EXT.IO2 units on the same I2C bus to expand more IO resources. It is suitable for applications such as multi-channel digital/analog signal acquisition and light/servo control.

Features

• 8-channel input/output expansion:
  • Digital input/output
  • ADC input
  • SERVO control (PWM)
  • RGB LED control
• I2C communication interface:
  • Supports I2C address configuration

Includes

• 1 x Unit EXT.IO2
• 1 x HY2.0-4P Grove connection cable (20cm)

Applications

• IO expansion
• Servo control
• Multi-channel light control
• Multi-channel analog signal acquisition

Specifications
