EU868 LoRaWAN Module with STM32WLE5 MCU and Built-in Antenna

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

Unit LoRaWAN-EU868 is a LoRaWAN communication module based on LoRa technology, specifically designed for the EU868 frequency band, suitable for Europe and other regions using the EU868 frequency band. The module adopts the STM32WLE5 solution, supporting long-distance communication with low power consumption and high sensitivity. The module comes with a built-in LoRaWAN protocol stack, supporting Class A, Class B, and Class C operation modes. It also supports point-to-point (P2P) communication mode and uses a UART communication interface (controlled via AT commands) for flexible configuration. Additionally, the product features a high-performance rubber duck antenna, with an optimized antenna structure design, providing more stable signal coverage and longer communication distances, suitable for various complex environments. This module can be used as a collection node to connect to gateways for data collection and management, or for direct communication between devices in scenarios without gateways. It is used in long-distance, low-power IoT communication scenarios such as smart agriculture, industrial monitoring, and environmental monitoring node deployment.

Features

• Compliant with LoRaWAN® 1.0.3 protocol
• Supports EU868 frequency band
• Supports LoRa® P2P (Point-to-Point) communication
• LoRaWAN activation modes: OTAA, ABP
• Serial communication (AT commands)
• High-sensitivity rubber duck antenna
• Low power consumption
• Compatible with LEGO holes
• Development platforms:
  • UiFlow1
  • UiFlow2
  • Arduino IDE

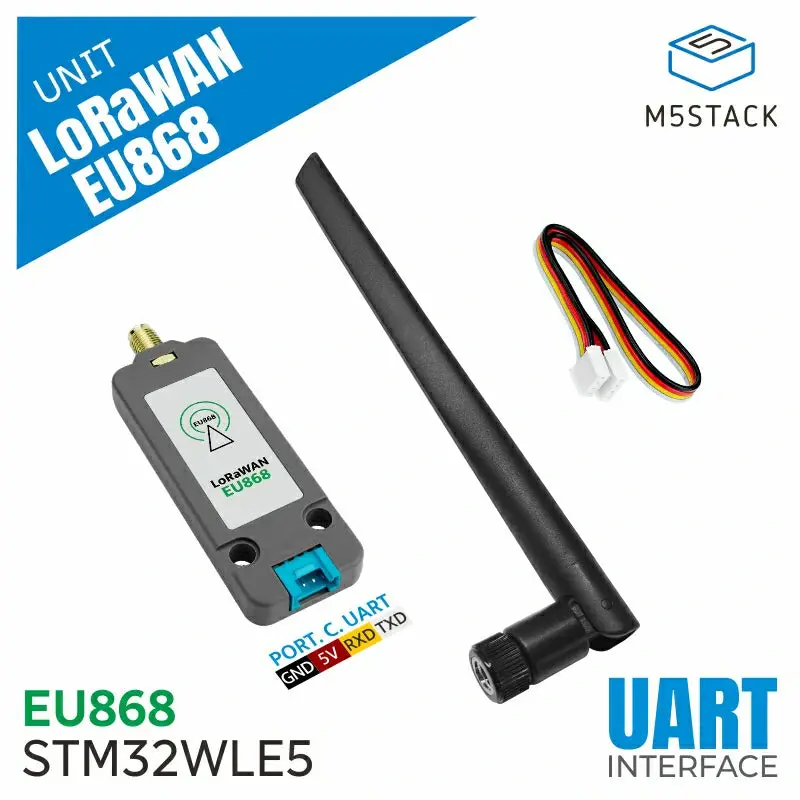

Includes

• 1 x Unit LoRaWAN-EU868
• 1 x HY2.0-4P Grove cable (20cm)
• 1 x Rubber duck antenna (@2.8dBi, total length 195mm, SMA male connector)

Applications

• Smart agriculture
• Industrial monitoring
• Environmental monitoring node deployment

Specifications

Learn and Documents
