Description

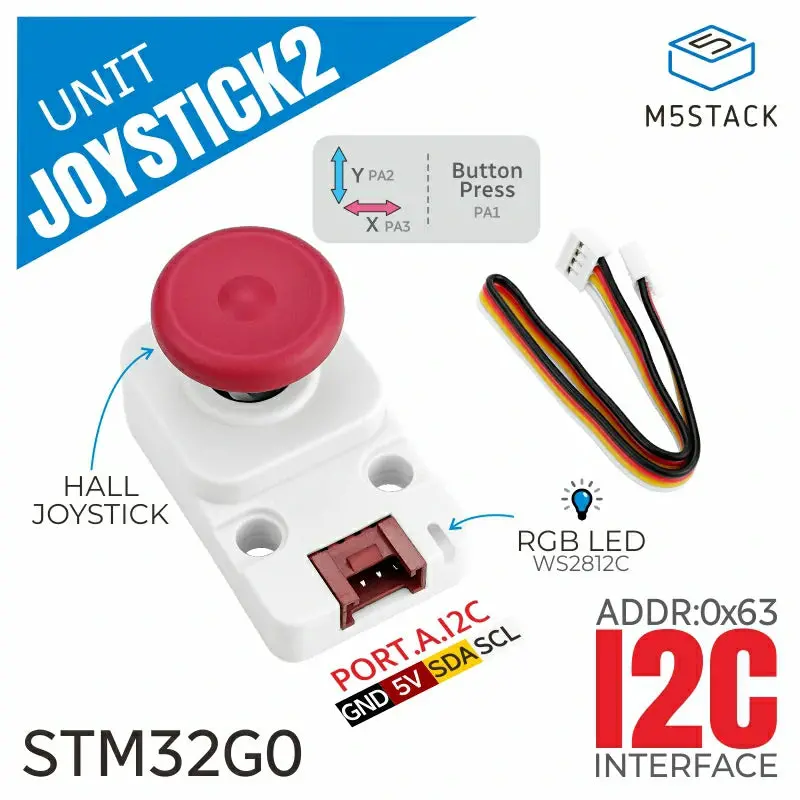

Unit Joystick2 is a high-precision Hall effect joystick control unit, built with an STM32G030F6P6 main control chip and integrated firmware for joystick signal acquisition. The unit communicates via the I2C interface and supports three-axis control signal input, including analog input for the X/Y axes and digital button input for the Z axis. Unit Joystick2 uses a Hall effect joystick, achieving high-precision control by detecting magnetic field changes, offering advantages such as contactless operation, wear resistance, high accuracy, and strong anti-interference capability, ensuring product stability and long service life. Additionally, the device is equipped with a WS2812 RGB LED for status indication and interactive display, and reserves a firmware upgrade interface for the STM32, making firmware updates convenient. This product is suitable for various application scenarios such as game controllers and robot control.

Features

• Hall effect joystick
• Three-axis input:
  • X/Y axis offset analog input
  • Z-axis button digital input
• Built-in STM32
• I2C communication
• RGB LED
• 2 x LEGO compatible holes
• Development Platform: Arduino, UiFlow

Includes

• 1 x Unit Joystick2
• 1 x HY2.0-4P Grove Cable (20cm)

Applications

• Game controller
• Remote-controlled robot

Specifications

Specification	Parameter
MCU	STM32G030F6P6@Cortex-M0+, 64MHz main frequency
Flash	32KB
SRAM	8KB
Communication Interface	I2C Communication @0x63
X/Y axis output	16-bit ADC output (0-65535)
Z-axis button	0/1
RGB LED	1x WS2812C
Product Size	40.0 x 24.0 x 23.9mm
Product Weight	10.0g
Package Size	138.0 x 93.0 x 24.9mm
Gross Weight	15.7g

Product Comparison

Product Compare	Unit Joystick v1.1	Unit Joystick2
MCU	MEGA8A	STM32G030F6P6
RGB	/	WS2812C
X/Y axis offset output value	8 bits (0-255)	16 bits (0-65535)
Communication Mode	I2C (0x52)	I2C (0x63)
manufacturing technique	Carbon film joystick	Hall effect joystick
