Adjustable 13.2V DC Programmable Power Supply Module

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

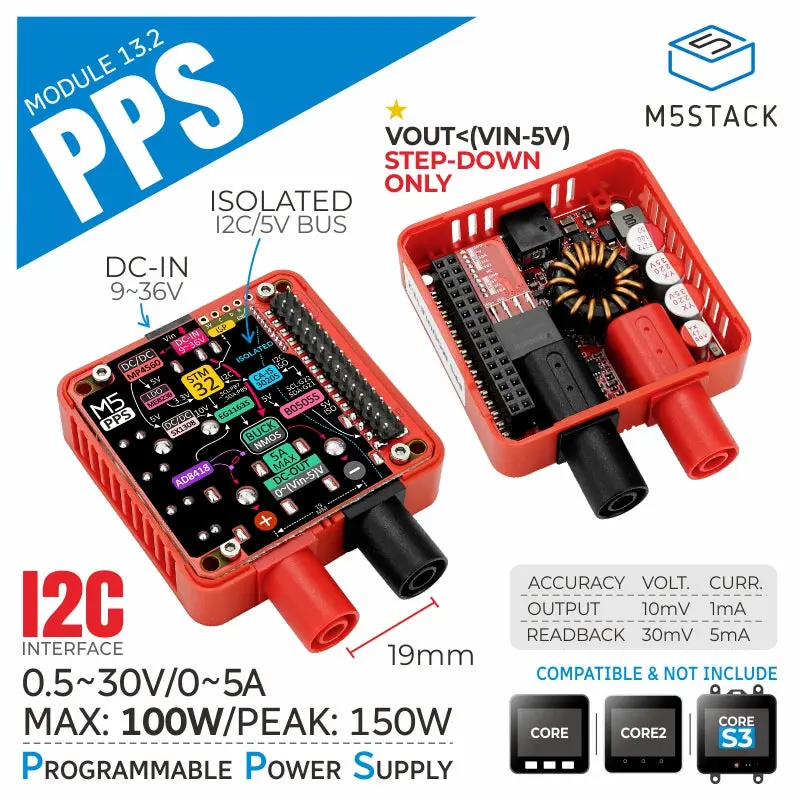

Module13.2 PPS is a programmable power supply module. The module adopts STEP-DOWN buck technology, supports a wide DC 9 ~ 36V input voltage, and integrates an STM32 control processor and AD8418 high-resolution current amplifier. Through high-precision closed-loop control, it achieves a rated output power of 100W (peak 150W) for current and voltage output, with an output range of 0.5 ~ 30V / 0 ~ 5A and readback accuracy of ±30mV / ±5mA. In addition, the integrated isolation chips CA-IS3020S and B0505S-1WR3 provide electrical isolation for power and communication buses. The output interface uses standard 4MM banana sockets with a 19mm spacing between positive and negative poles. Each module is factory-calibrated for full-range accuracy. Users need to separately purchase a DC power adapter for use. This module is suitable for scientific research experiments, industrial automation, embedded system development, and adjustable power supply DIY projects.

Notice Using Module13.2 PPS requires an external DC 9 ~ 36V power supply, otherwise it will show no I2C device and will not work. The maximum output value depends on the output capability of the input DC power supply. Power detection Power input detection interface (5-24V@5A): – USB PD power input – Relay Base power input

Features

• DC 9-36V wide voltage input, output 0.5V ~ 30V @ 0~5A
• High-precision rated output power 100W (peak 150W)
• Electrical isolation safety performance
• Standard 4mm banana socket, 19mm pole spacing
• Suitable for Core/Core2/CoreS3 series hosts

Includes

• 1 x Module13.2 PPS

Applications

• Scientific research experiments
• Industrial automation
• Embedded system development
• Adjustable power supply DIY projects

Specifications

Specification	Parameter
MCU	STM32G030F6P6
Communication Interface	I2C Communication @0x35
Power and Communication Bus Isolation Chips	CA-IS3020S and B0505S-1WR3
Current Amplifier Chip	AD8418
Input Voltage	DC 9-36V
Output Power	100W (Peak 150W)
Output Voltage/Current	0.5V ~ 30V @ 0~5A
Accuracy	±30mV@5mA
Standby Current	Avg:DC 36V@12mA
Operating Current	Avg:DC 36V@32mA
Banana Jack Specification (Pitch)	4MM (Pitch 19mm)
Operating Temperature	0 ~ 40°C
Product Size	54.0 x 54.0 x 19.7mm
Product Weight	43.4g
Package Size	132.0 x 95.0 x 21.0mm
Gross Weight	64.6g
