AD8232 ECG Module Kit – Includes Electrode Cables and Disposable Pads

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

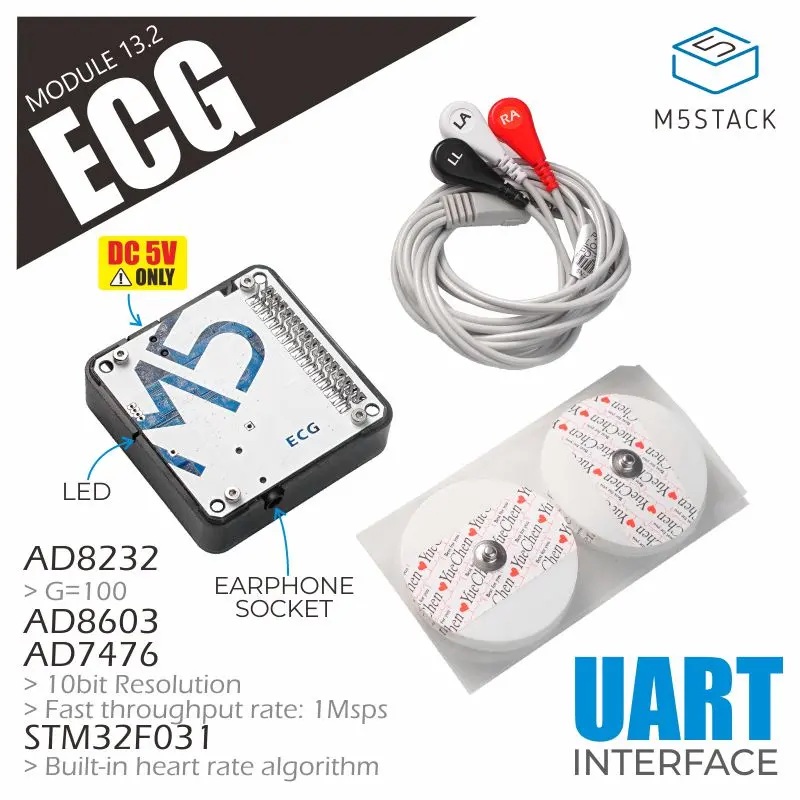

Module13.2 ECG is a heart rate measurement module capable of being used for human heart rate statistics and ECG waveform generation. Electrocardiography (ECG) is a technique that uses an electrocardiograph to record the electrical activity of the heart during each cardiac cycle from the body surface. On the signal acquisition side, the Module13.2 ECG integrates the AD8232 single-lead heart rate monitoring front end. The collected ECG signal is processed through the AD8603 low-pass filter, then fed into a 10-bit ADC (AD7476) for analog-to-digital conversion and input into an STM32 (which has a built-in heart rate statistics algorithm) for signal analysis. Finally, the processing results are output in serial communication format, making it easy for the host device to acquire and display the data. In terms of signal output, it adopts a full isolation design between the front-end and the digital part to enhance stability and safety.

Power Supply Note This product only supports 5V power input. Please strictly follow this power input standard when using the product to avoid damage to the device or potential injury.

Features

• ADI integrated front-end (High signal gain G=100, with DC blocking capability)
• Serial data output
• Built-in heart rate statistics algorithm
• Full isolation between front-end and digital section
• Ultra-precision operational amplifier

Includes

• 1 x Module13.2 ECG
• 3 x ECG Lead Wires
• 6 x Lead Electrodes

Applications

• Bioelectrical signal acquisition
• Portable ECG
• Fitness and exercise heart rate monitors

Specifications

Specification	Parameter
MCU	STM32F031G4U6
Communication	UART 115200bps
AD8232	High signal gain G=100
AD7476	10bit-ADC
Product Size	54.0 x 54.0 x 13.2mm
Product Weight	18.0g
Package Size	105.0 x 65.0 x 40.0mm
Gross Weight	101.0g

Learn and Documents

→ DOCUMENTS

Explore more from our collection.
