VL53L0X Time-of-Flight Distance Sensor with Chain Mounting

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

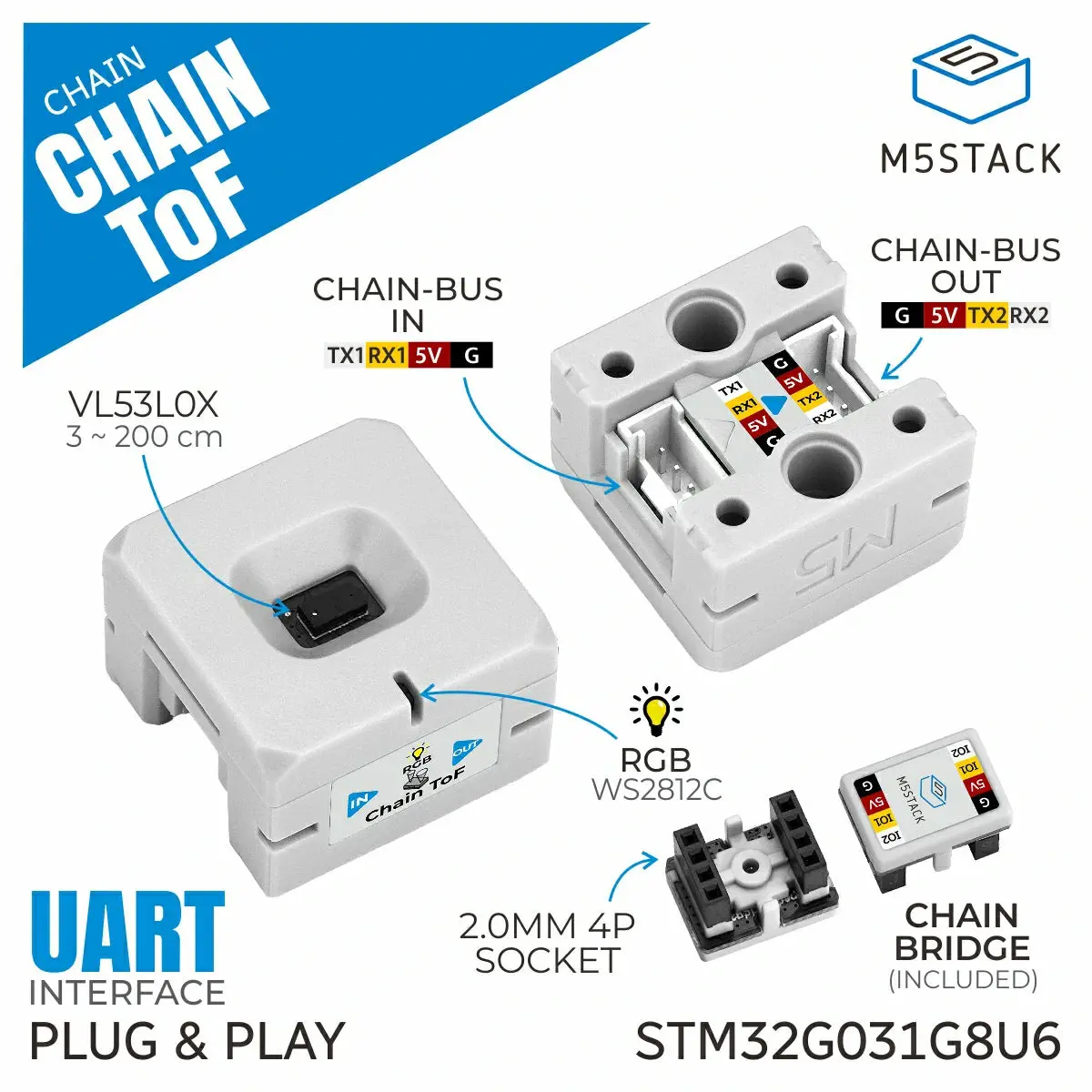

Chain ToF is a laser ranging sensor node in the M5Stack Chain series. The device integrates a VL53L0C laser ranging module, supporting a distance measurement range of 3 ~ 200cm with an accuracy of ±3%. It is suitable for short-range non-contact distance measurement and object proximity detection applications. Chain ToF integrates an STM32G031G8U6 core MCU and adopts a UART daisy-chain communication protocol. With two HY2.0-4P expansion interfaces, it can be extended with additional Chain series devices to build richer interactive applications.

Features

• M5Stack Chain series
• VL53L0C laser ranging module
• 3 ~ 200cm measurement range
• STM32G031G8U6 core MCU
• UART serial daisy-chain communication protocol
• 2 x HY2.0-4P expansion interfaces for extending Chain series devices

Includes

• 1 x Chain ToF
• 1 x Chain Bridge

Applications

• Proximity detection
• Distance measurement

Specifications

Specification	Parameter
MCU	STM32G031G8U6
Laser Module	VL53L0C
Measurement Range	3 ~ 200cm
Measurement Accuracy	±3%
Input Power	DC 5V
Communication Interface	UART
Interface Type	2 x HY2.0-4P
RGB LED	1 x WS2812C
Power Consumption	Stop mode (white RGB on): DC 5V@21.27mA Default mode single measurement: DC 5V@20.26mA Default mode continuous measurement: DC 5V@24.75mA
Operating Temperature	0 ~ 40°C
Product Size	23.9 x 23.9 x 16.0mm
Product Weight	8.8g
Package Size	138.0 x 93.0 x 14.0mm
Gross Weight	13.9g

Operating Instructions

Measurement Environment Under normal conditions, the maximum test distance is 120cm. To reach 200cm, Long Range mode must be enabled and the measurement must be performed in a dark environment without infrared interference. Connection Instructions Use the Chain Bridge connector to connect the main controller Chain DualKey and each Chain series input device. Pay attention to the connection direction: the triangular arrow should point from the Chain DualKey main controller outward, as shown below:
