ST25R3916 NFC Universal Reader Module

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

Unit NFC is a near-field communication read/write unit operating at 13.56 MHz. The module features the ST25R3916 high-performance NFC front-end IC, supporting mainstream protocols including ISO 14443A, ISO 14443B, FeliCa™, and ISO 15693, enabling reliable read/write operations and data exchange with a wide variety of NFC/RFID tags and cards. The IC supports reader/writer mode, card emulation mode, and custom protocol mode, with automatic antenna tuning, high-sensitivity reception, and comprehensive protocol handling capabilities.

This unit communicates with the host device via I2C interface, ensuring reliable and stable data transmission. The product features a LEGO-compatible hole design for easy structural integration and screw-mount installation, making it suitable for a wide range of near-field communication and identity verification applications, including access control systems, identity authentication, and smart transportation.

Features

• 13.56 MHz high-frequency near-field communication
• Equipped with ST25R3916 high-performance IC
• Supports ISO14443A, ISO14443B, FeliCa™, and ISO15693 protocols
• Supports three operating modes: Reader/Writer / Card Emulation / Custom Protocol
• I2C communication interface
• LEGO-compatible mounting holes
• Development Platform
  • UiFlow2
  • Arduino IDE

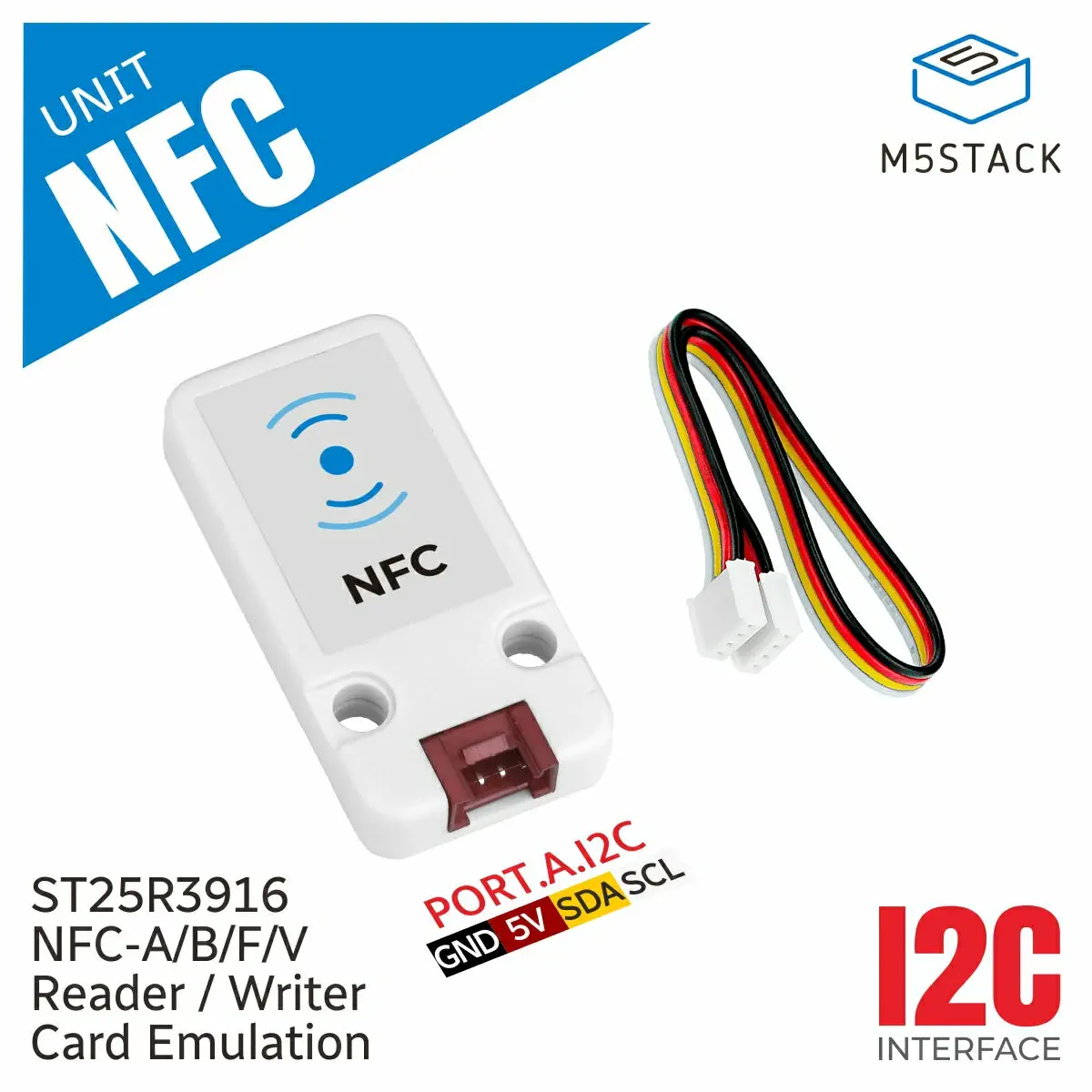

Includes

• 1 x Unit NFC
• 1 x HY2.0-4P Grove Cable (20cm)

Applications

• Access Control Systems
• Identity Verification
• Smart Transportation

Specifications

Specification	Parameter
IC Type	ST25R3916-AQWT
Operating Frequency	13.56 MHz
Communication Interface	I2C @0x50 (100K / 400K)
Supported Protocols	Reader/Writer Mode: NFC-A/B (ISO 14443A/B compatible), NFC-F (FeliCa™), NFC-V (ISO 15693) Card Emulation Mode: NFC-A / NFC-F
Read/Write Range	≤ 40mm
Power Consumption	Sleep: 5V @ 19.33uA Power-on (unconfigured): 5V @ 19.79uA Continuous reading: 5V @ 67.65mA Intermittent reading: 5V @ 66.48mA
Product Size	48.0 x 24.0 x 8.0mm
Product Weight	5.9g
Package Size	138.0 x 93.0 x 9.0mm
Gross Weight	11.5g
