SIM800C 2G GSM Communication Module – Compact Embedded Cellular Board for IoT and M2M Applications

Description

Product Status Notice This product is EOL (End of Life). /* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

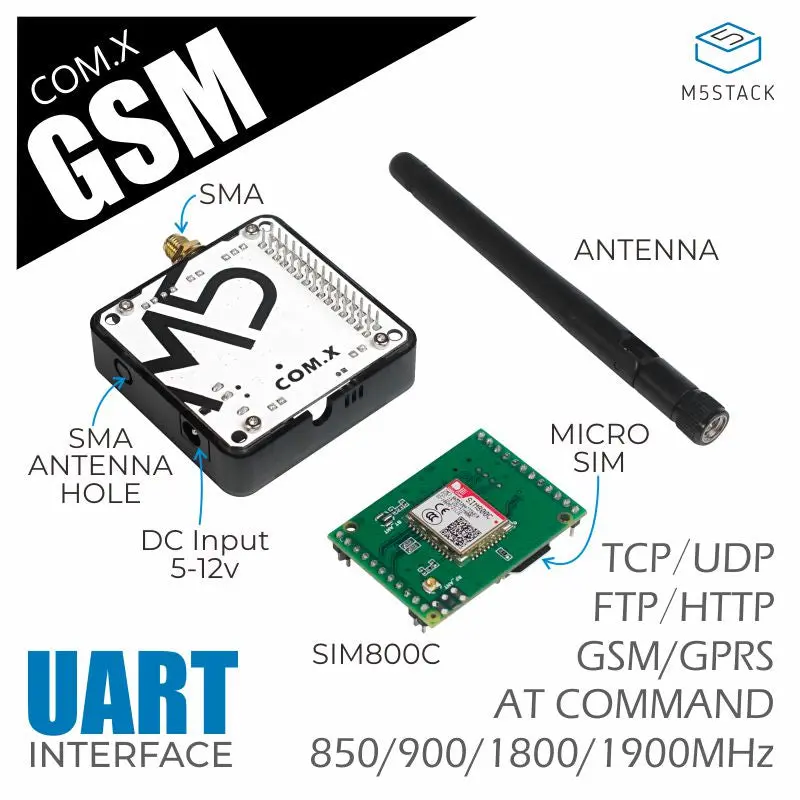

Module COMX GSM is a stackable 2G communication module with a built-in SIM800C communication module, operating at GSM/GPRS frequencies of 850/900/1800/1900MHz, enabling low-power transmission of SMS text and data messages. The module features a DC power input, allowing it to be powered by an external power supply of 5 ~ 12V. For user convenience in configuring pins, a DIP switch is used for pin settings. This module is particularly suitable for IoT industries such as remote meter reading, smart wearables, smart parking, and municipal management, where ultra-low power consumption and compact size are core requirements.

Compatibility When used with the Fire controller, due to PSRAM pin (G16/G17) conflicts, please switch the module base DIP switch pins to TX(G0/G13), RX(G5/G15).

Features

• Stackable design
• Supports SMS text and data transmission
• Can be powered externally
• AT command control
• SIM card type: MicroSIM
• Status signals: Two LED indicators (power/network status)
• Power supply voltage: 3.4-4.4V
• Typical power consumption in sleep mode: 0.88mA
• External antenna: 2.5dB SMA antenna
• Serial communication: UART 115200bps
• Operating temperature range: -40°C to +85°C
• Frequency bands:
  • Quad-band 850/900/1800/1900MHz
  • GPRS multi-slot class 12/10
  • GPRS mobile station class B
• Data transmission:
  • GPRS class 12: Maximum 85.6 kbps (uplink/downlink speed)
  • Supports PBCCH (Packet Broadcast Control Channel)
  • Coding schemes: CS 1, 2, 3, 4
  • Integrated TCP/IP, UDP, HTTP, FTP protocols
  • Supports USSD (Unstructured Supplementary Services Data)

Includes

• 1 x Module COMX GSM
• 1 x SMA antenna

Applications

• Smart metering
• Smart parking
• Municipal management

Specifications

Specification	Parameter
Frequency bands	GSM/GPRS 850/900/1800/1900MHz
Network protocols	TCP/IP/UDP/FTP/HTTP, etc.
Antenna gain	2.5dB 1880-1900MHz/2320-2370MHz 2575-2635MHz
Communication method	UART 115200bps
DC interface specs	5.5mm
Net weight	40g
Gross weight	75g
Module dimensions	54 x 54 x 13.2mm
Package Size	165 x 60 x 36mm
