Description

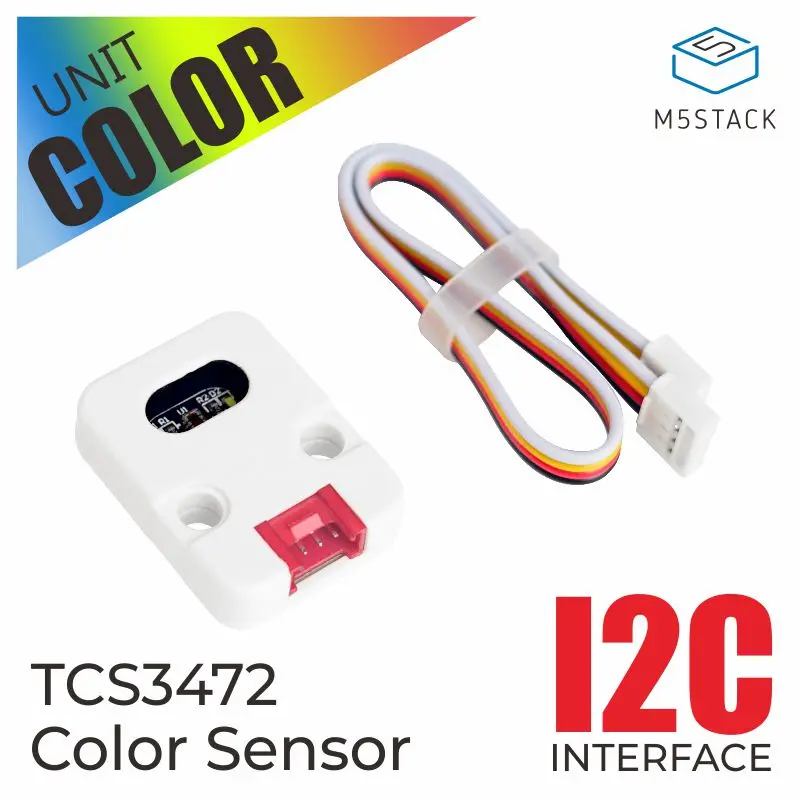

Unit Color is a color recognition unit that integrates a TCS3472 color light digital converter, capable of converting detected color values into RGB data and returning it to the M5Core. This unit communicates with the M5Core via the PORT A interface (I2C), with an I2C address of 0x29.

Features

• HY2.0-4P interface, supports UIFlow and Arduino
• 2 x LEGO compatible holes

Includes

• 1 x Unit Color
• 1 x HY2.0-4P Grove connection cable (20cm)

Applications

• Product color verification
• Color tracking robots

Specifications

Specification	Parameter
IC Model	TCS3472
Communication Interface	I2C @0x29
Operating Temperature Range	-40 ~ 85°C
Product Size	32.0 x 24.0 x 8.0mm
Product Weight	4.3g
Package Size	138.0 x 93.0 x 9.0mm
Gross Weight	10.0g
