Replacement Components for V3 Dropper System

Description

Service and replacement parts for the OneUp V3 Dropper Post.

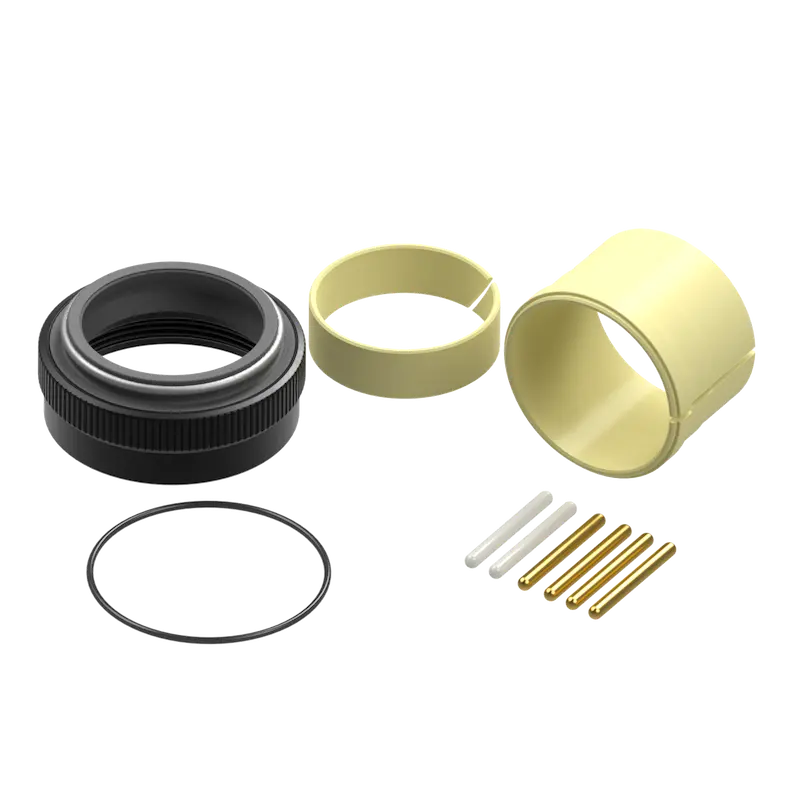

V3 Dropper Rebuild Kits Includes:

• 1 x SKF Midcap Assembly
• 1 x Midcap O-Ring
• 2 x Lower Bushings
• 1 x Upper Bushing
• 1 x Cartridge Spacer
• 2 x Polymer Guide Pins
• 3 x Brass Guide Pins

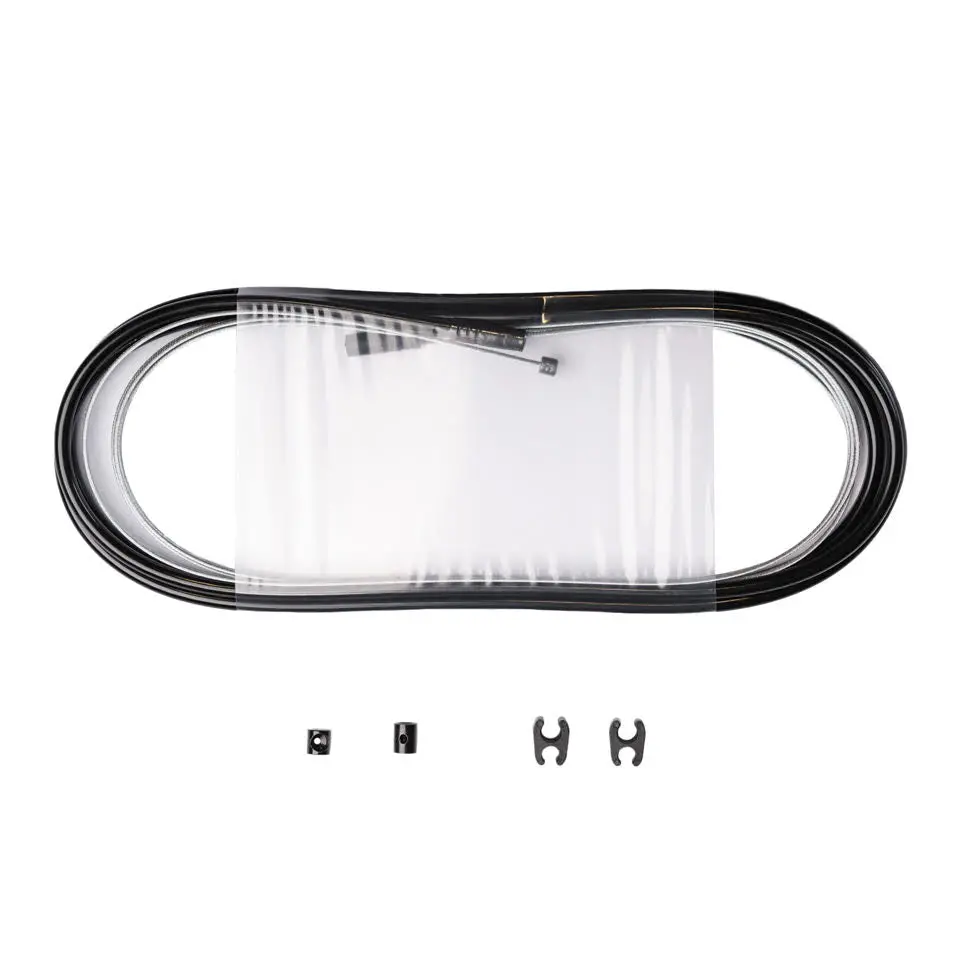

Dropper Cable/Nut Kit Includes:

• Dropper Cable (1800mm)
• Cable Housing (1750mm)
• Remote Barrel Adjuster
• Actuator Bushing Inline (standard)
• Actuator Bushing Set Screw (for dropper remotes that require the cable head at the remote)
• 2 x Housing Clips

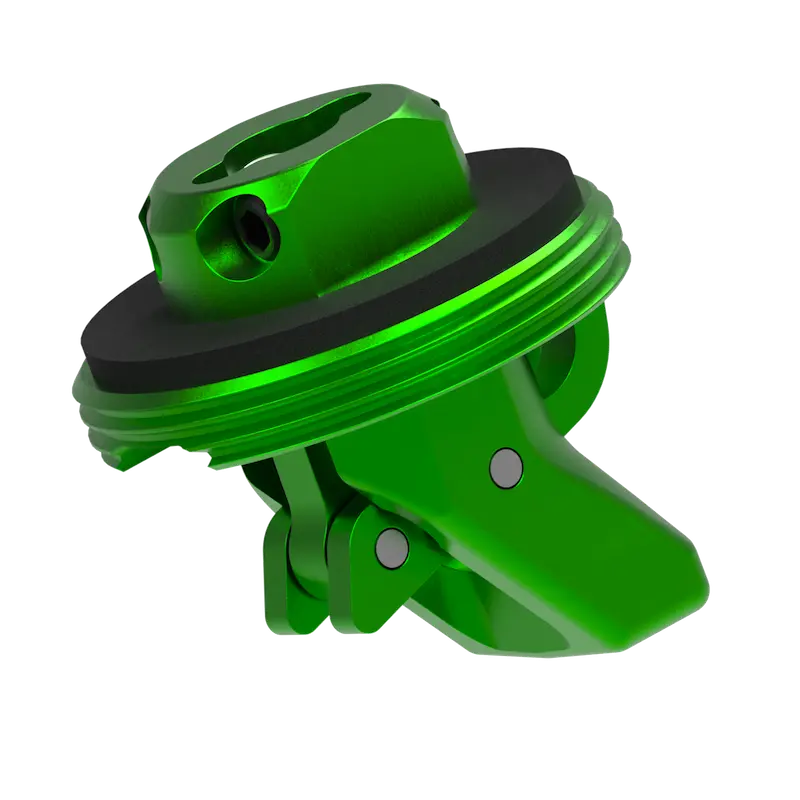

V3 Dropper Actuator Kit Includes:

• 1 x V3 Actuator
• 1 x Cartridge Washer
• 2 x Actuator Lockbolts

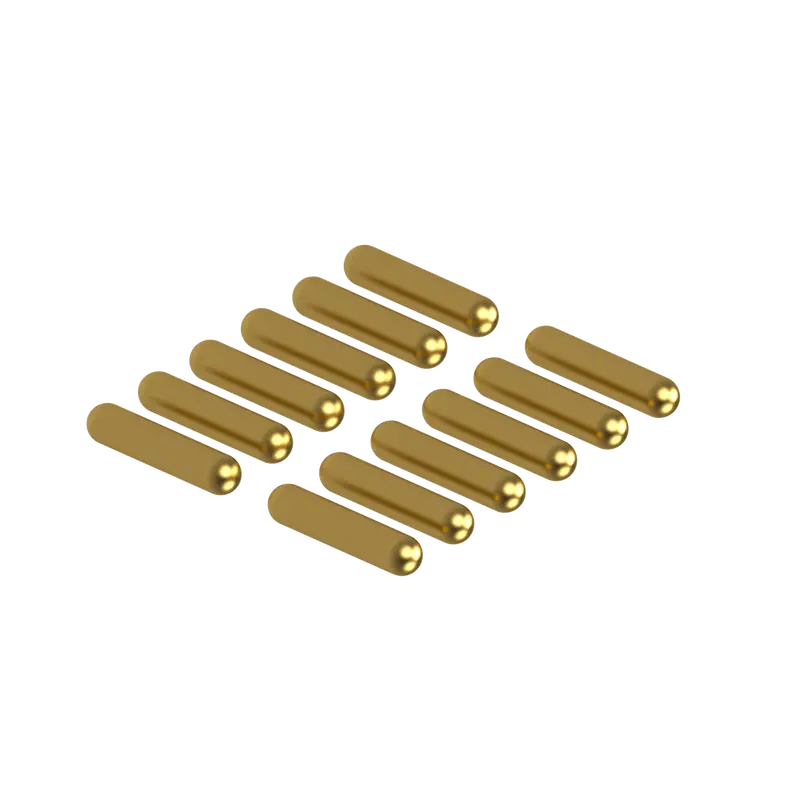

V3 Dropper Travel Shim Kit Includes:

• 12 x 9.5x2mm Brass Pins
• 1 x Sachet of Slickoleum Grease

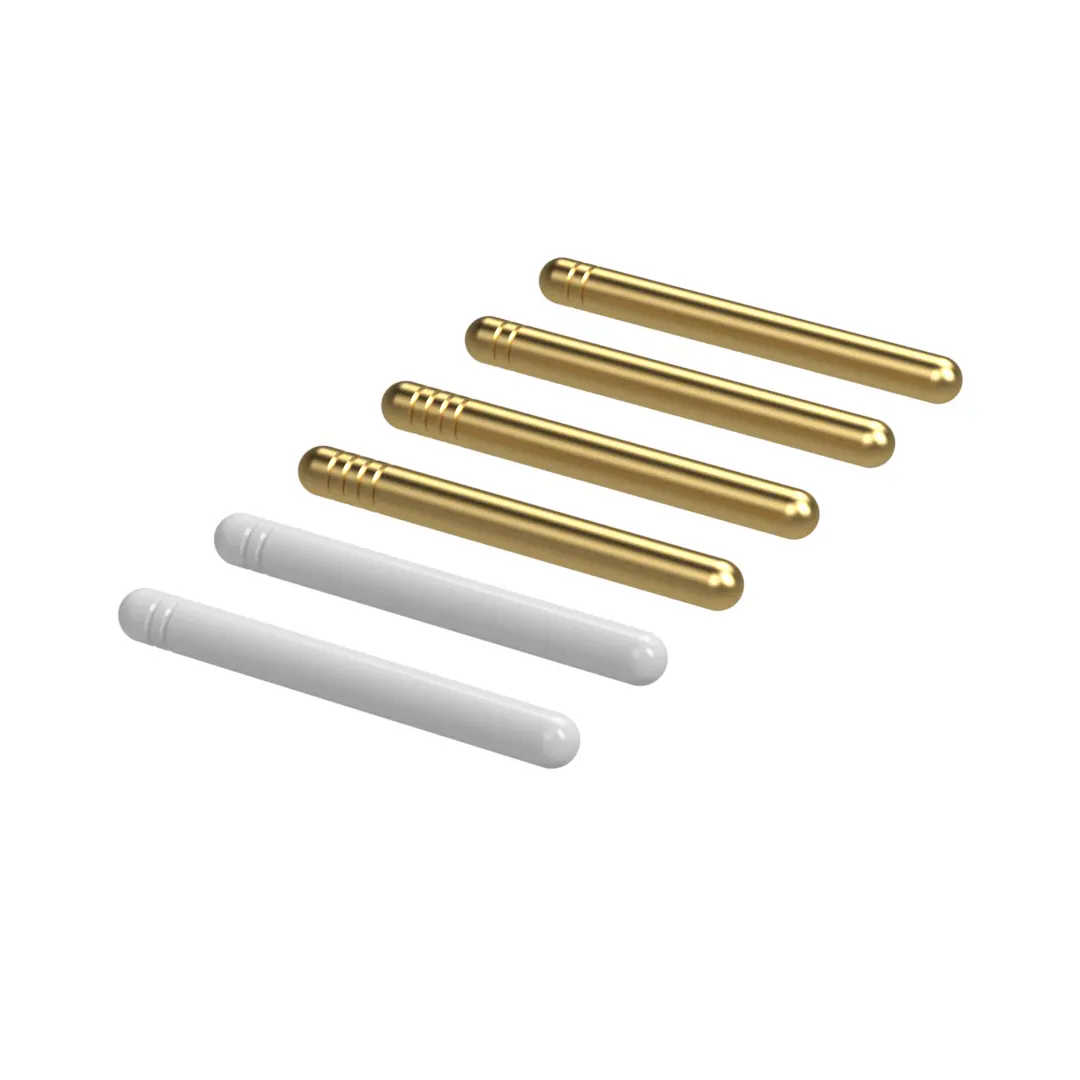

V3 Dropper Oversized Pin Kit Includes:

• 2 x Polymer Bushings
• 4 x 2.03mm Brass pins (Two Lines)
• 4 x 2.05mm Brass Pins (Four Lines)

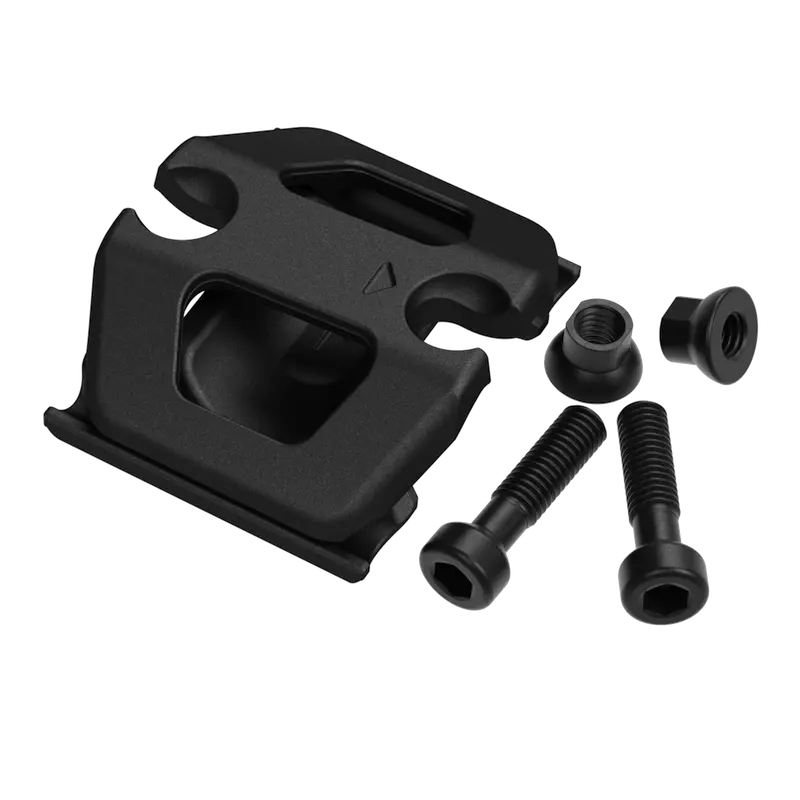

V3 Dropper Saddle Clamp Assembly Includes:

• 1 x Saddle Clamp Upper
• 1 x Saddle Clamp Lower
• 2 x Steel M6x1x16mm Bolts
• 2 x Saddle Clamp Nuts

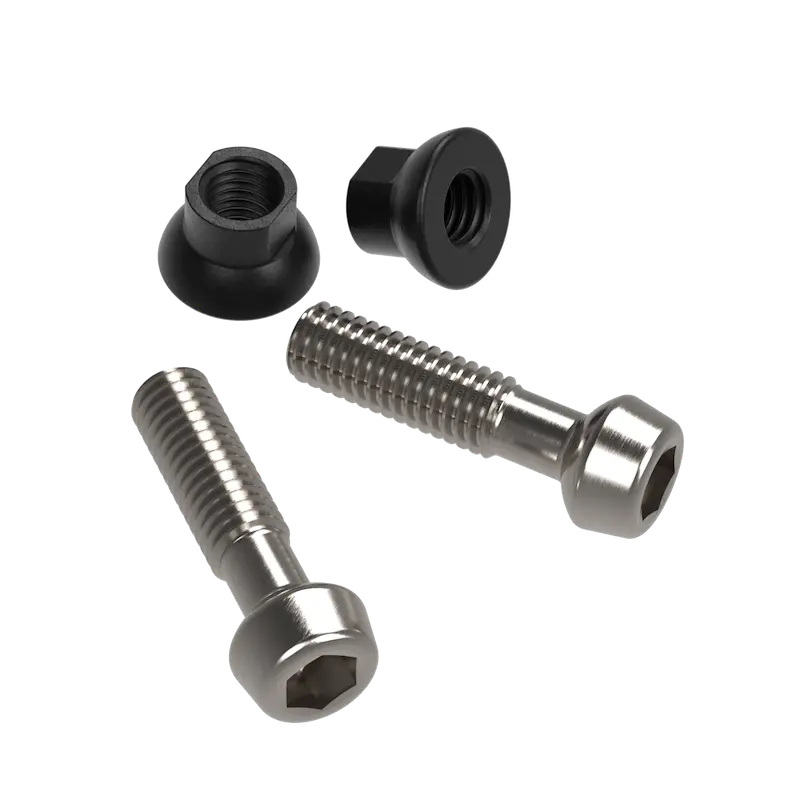

Dropper Post Titanium Bolt Upgrade Kit Includes:

• 2 x Titanium M6x1x16mm Bolts
• 2 x Saddle Clamp Nuts

V3 Dropper Cartridge Kits Includes:

• 1 x V3 Cartridge
• 1 x Cartridge Puncture Nut (to recycle the old cartridge with)

Service Guides:

V3 Dropper Full Rebuild Instructions

V3 Dropper Quick Grease Instructions

V3 Dropper Travel Adjustment Instructions

V3 Dropper Cartridge Replacement Instructions

Note: These parts are only compatible the OneUp V3 Dropper Post – with the exception of the Titanium Bolt Kit, which is backwards compatible with the V2.

Select the parts you need, and add them to your cart individually.
