Neoflash Illuminated Acrylic Display Board

Description

This product is EOL.

Description

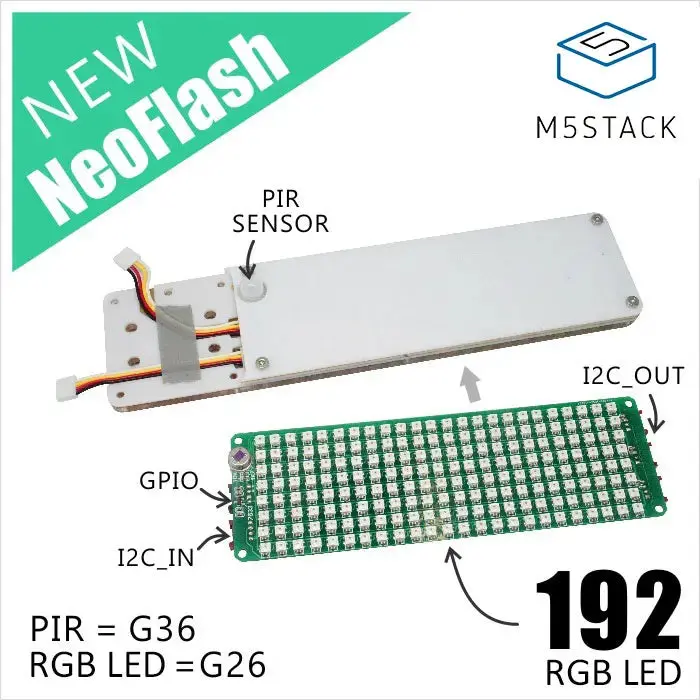

NEOFLASH is a RGB LED panel with 192 integrated LEDs and (WS2812C) RGB LED IC.

When you program this Unit, please pay attention to the sequence of the RGB LEDs. From top left (Where PIR placed) to right, and top to bottom.

Connect this unit with M5Core via GROVE PORTB Single-Bus.

We’ve added a magnet on the backside of the panel which means you can attach this to any metal surface. When you plug the GROVE PORTA into M5core, you have convert it into 3 extended GROVE A laid on the side.

Product Features

• Total RGB leds quantity: 192
• PIR
• PORTA extension(up to 3)
• Software Development Platform: Arduino, UIFlow (Blockly, Python)
• Two Lego-compatible holes

Include

• 1x NeoFlash Unit
• 1x Grove Cable

Specification

Resources	Parameter
RGB LED	x 192
PORTA Interface	x 3
Number of holes	40
Net weight	119g
Gross weight	131g
Product Size	220*53*10mm
Package Size	220*59*10mm
