Description

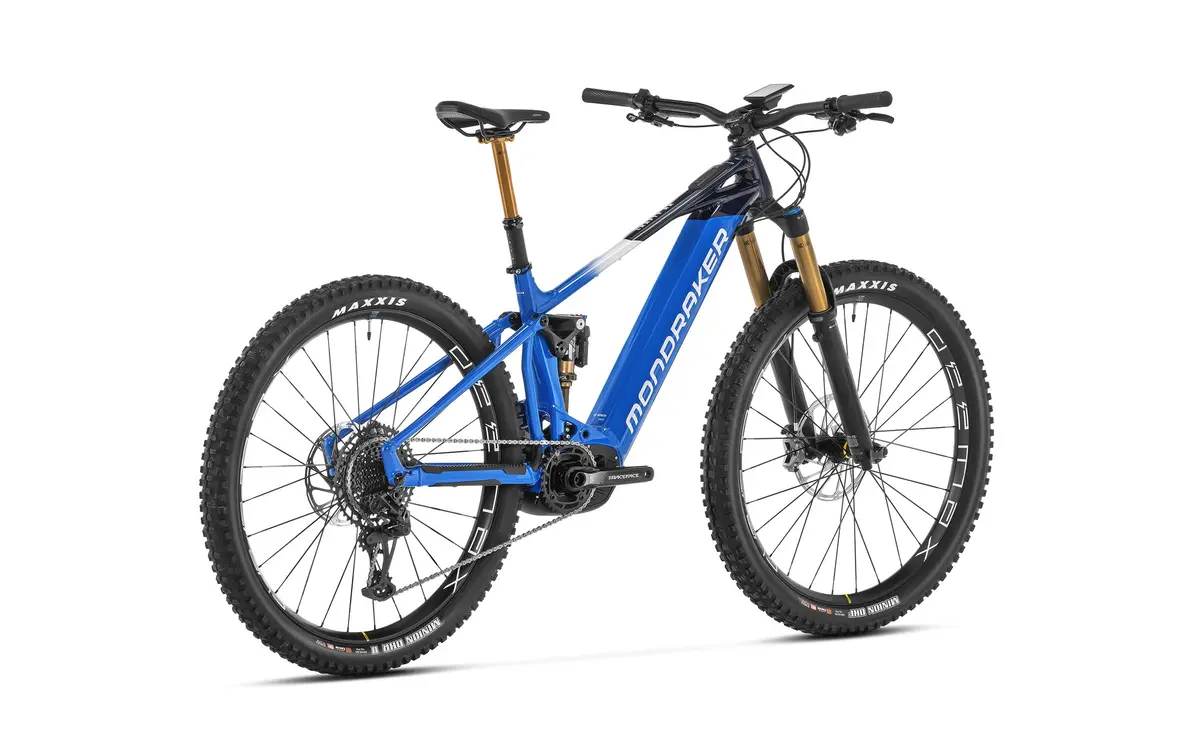

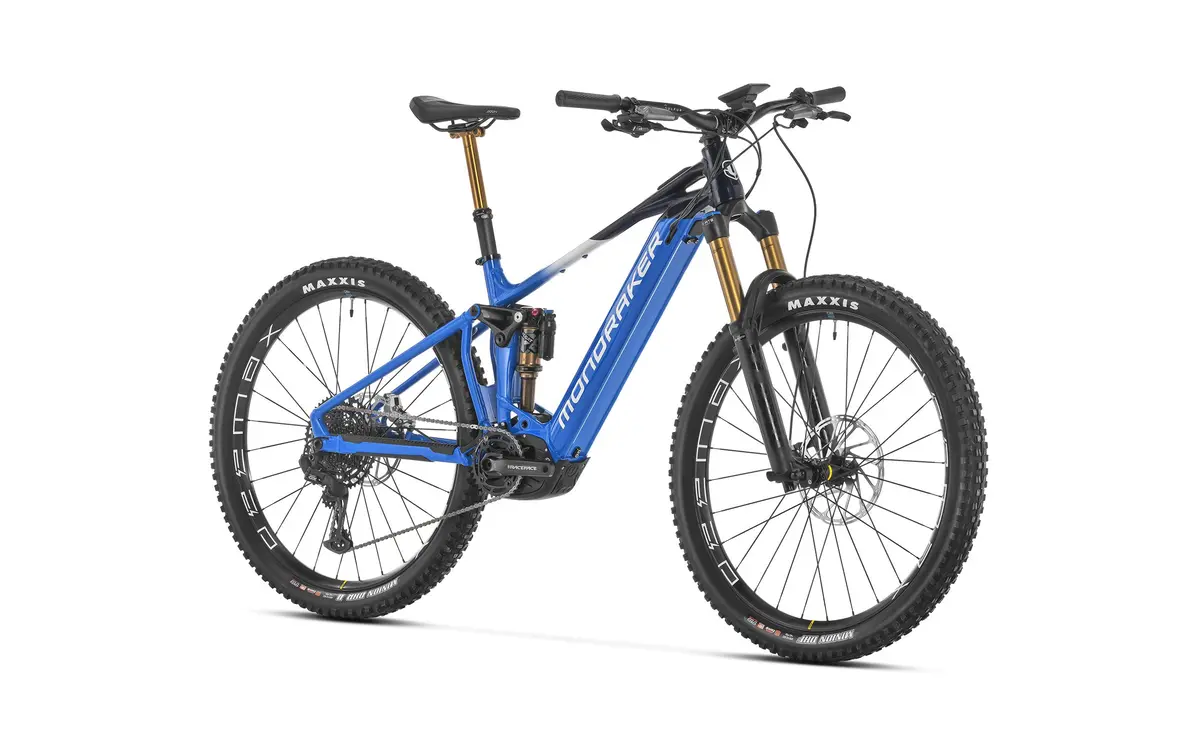

- PRE-ORDER DELIVERY ESTIMATE IS CURRENTLY 2 WEEKSThe game is over, welcome to a new generation of authentic e-Enduro. Without compromises, the new Crafty is a pure performance model, an authentic Enduro bike; With great suspension capability and amazing pedaling efficiency … agile like no other 29” e-MTB thanks to its renewed Forward Geometry and, all sweetened with raw power of the fourth generation of the Bosch system. Enjoy the real life.
Frame
Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock
Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings
medium compression, medium rebound, air volume spacer 0.2
Fork
Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Desert, 1lock-on, 135mm
Seatpost
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm
Saddle
FIZIK Terra Aidon X5 145mm
Front brake
Sram Code Bronze, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram Code Bronze, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Rims
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes
Mavic J-bend double butted, contactless lacing
Front hub
Mavic, Boost 15x110mm, IS 6 bolts
Rear hub
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Front tire
Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire
Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset
Race Face Aeffect ebike, 165mm
Rings
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain
Sram NX Eagle, 12s, Powerlock
Rear derrailleur
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers
Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Casette
Sram PG-1230, 11-50T, 12s
Derailleur hanger
Mondraker M068
Weight
25,9 kg
Display
Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Motor
Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM
Battery
Bosch Powertube 750Wh
FRAME SIZE S M L A Seattube length 380mm 420mm 450mm 490mm B Toptube length 605mm 625mm 650mm 670mm C Bottom bracket drop -25mm -25mm -25mm -25mm D Bottom bracket height 350mm 350mm 350mm 350mm E Chainstay length 455mm 455mm 455mm 455mm F Seat tube angle 73.5° 73.5° 73.5° 73.5° G Effective seattube angle 76° 76° 76° 76° H Headtube angle 65.5° 65.5° 65.5° 65.5° I Fork Offset 44mm 44mm 44mm 44mm J Wheelbase 1225mm 1245mm 1265mm 1285mm K Headtube length 110mm 110mm 130mm 130mm L Reach 450mm 470mm 490mm 510mm M Stack 622mm 622mm 640mm 640mm
