Metron TFA Aero Handlebar

Description

• Patent pending Snakebite stem allows for flip-able base bar with internal cable routing
• Full carbon wing and ergonomic extensions
• Normalized fit increments in every dimension
• Easy adjustability with no occluded bolts
• Internal cable routing and Di2 compatible 3:1 UCI compliant
• Stem length: 90mm
• Base bar width: 400mm (c-c)
• Stem allows for internal Di2 junction box positioning and internal cable routing.

EXTENSIONS

• TFA JS-Bend – included
• TFE Pro – available separately
• TFE Team Edition – available separately
• Speed S-Bend – available separately
• Speed J-Bend – available separately

FINISH

• UD carbon finish

WEIGHT

• 1,155 grams (with stem)

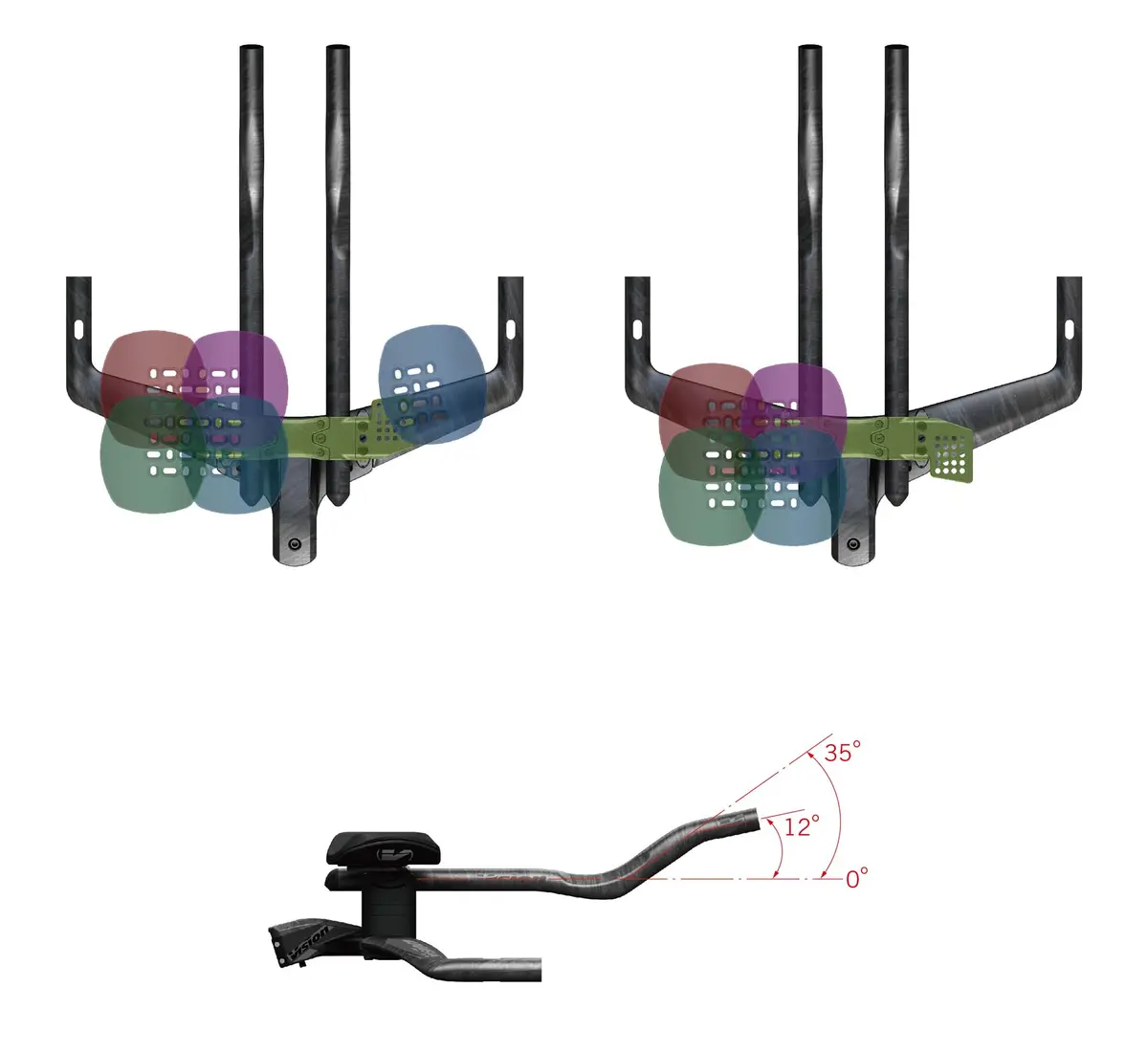

SPEC AND ADJUSTABILITY

• Stack 70mm to 145mm (Bottom of the stem at center to top of uncompressed pad – 5mm increments)
• Reach -9mm to -99mm (Center of base bar to rear edge of armrest – 7.5mm increments)
• Armrest width 210mm to 360mm (outside to outside – 15mm increments)
• Extension length adjustment 245mm to 385mm (Center of base bar to tip)
• Extension length 412mm
• Extension height 60mm (c-c)
• Extension angle 35° (12° at extension tip)
• Extension width 80mm (c-c)
• Base bar width 400mm (c-c)
• Base bar drop/rise -25mm / +25mm (c-c)
• Armrest rotation 0 – 12°
• Bracket tilt adjustment 0 – 12°
