Description

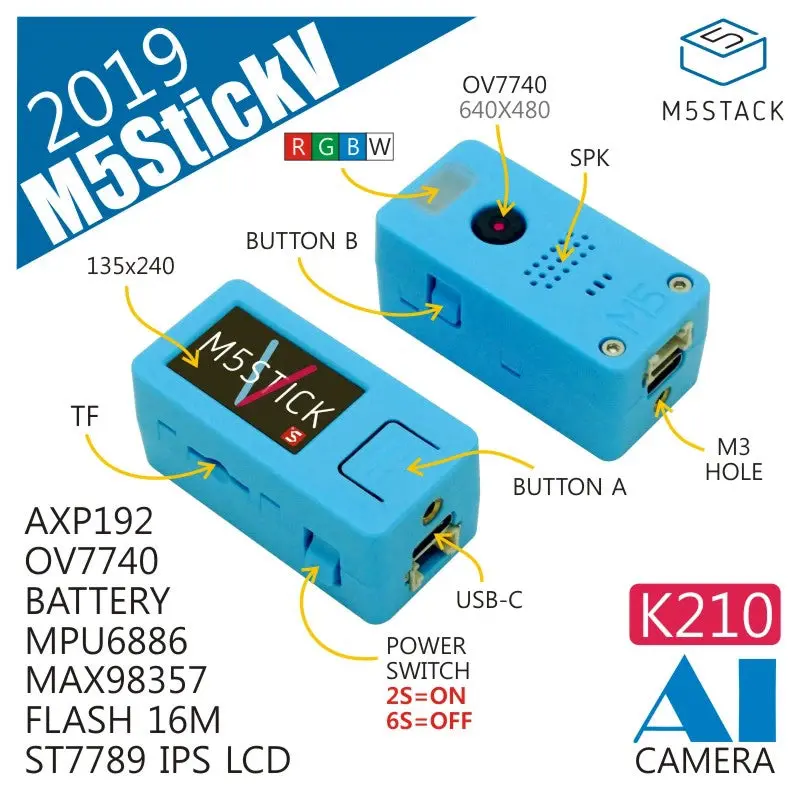

StickV is an AIOT (AI + IoT) camera equipped with the Kendryte K210, integrating a dual-core 64-bit RISC-V CPU and a neural network processor edge computing system-on-chip (SoC).

The StickV AI camera has machine vision capabilities, featuring the OmniVision OV7740 image sensor with OmniPixel®3-HS technology, offering superior low-light sensitivity compared to similar products. It supports various visual recognition functions, such as real-time acquisition of the size and coordinates of detected targets, as well as real-time identification of target types. Additionally, the camera can perform convolutional neural network computations with low power consumption, making StickV an excellent zero-threshold embedded machine vision solution.

Moreover, it supports the MicroPython development environment, which makes the program code more concise and refined when developing projects with StickV.

Features

• Dual-core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400MHz (Normal)
• Double-precision FPU
• Neural Network Processor (KPU) / 0.8Tops
• Programmable IO Array (FPIOA)
• Dual hardware 512-point 16-bit complex FFT
• SPI, I2C, UART, I2S, RTC, PWM, timer support
• AES, SHA256 accelerator
• Direct Memory Access Controller (DMAC)
• Supports MicroPython
• Firmware encryption support
• Development Platform
  • PlatformIO

Includes

• 1 x StickV
• 1 x USB Type-C (100cm)
• 1 x Stand
• 1 x Hex Wrench

Applications

• Face recognition/detection
• Object detection/classification
• Real-time acquisition of target size and coordinates
• Real-time acquisition of detected target types
• Shape recognition
• Video/display
• Game emulator

Specifications

Specification	Parameter
SoC	Kendryte K210@Dual-Core 64-bit RISC-V RV64GC, Main Frequency 400MHz
SRAM	8MB
Flash	16MB
Input Voltage	5V@500mA
KPU Neural Network Parameter Size	5.5MiB – 5.9MiB
Host Interface	USB Type-C x 1, HY2.0-4P (I2C+I/O+UART) x 1
RGB LED	RGBW x 1
Buttons	Custom Buttons x 2
IPS Screen	1.14 TFT, 135 x 240, ST7789
Camera	OV7740 (0.3MP)
FOV	55°
PMU	AXP192
Lithium Battery	200mAh
External Storage	TF-card (microSD)
MEMS 6-Axis Sensor	MPU6886
Shell Material	Plastic (PC)
Product Size	48.0 x 24.0 x 22.0mm
Product Weight	23.0g
Package Size	144.0 x 44.0 x 43.0mm
Gross Weight	82.0g
