M5StickC Plus Smartwatch Development Kit

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

The StickC-Plus Watch Kit is a M5StickC Plus watch set, including the M5StickC Plus IoT development board and a series of watch strap accessories. Based on the powerful hardware resources and expandability of the M5StickC Plus, it can be used not only for time display but also for applications such as motion state monitoring and smart home control. Combined with the M5Stack HAT hardware peripheral system for secondary development, it can further expand the possibilities of smart wearable applications.

Features

• Personalized support for custom display
• 200mAh battery
• Lightweight and portable

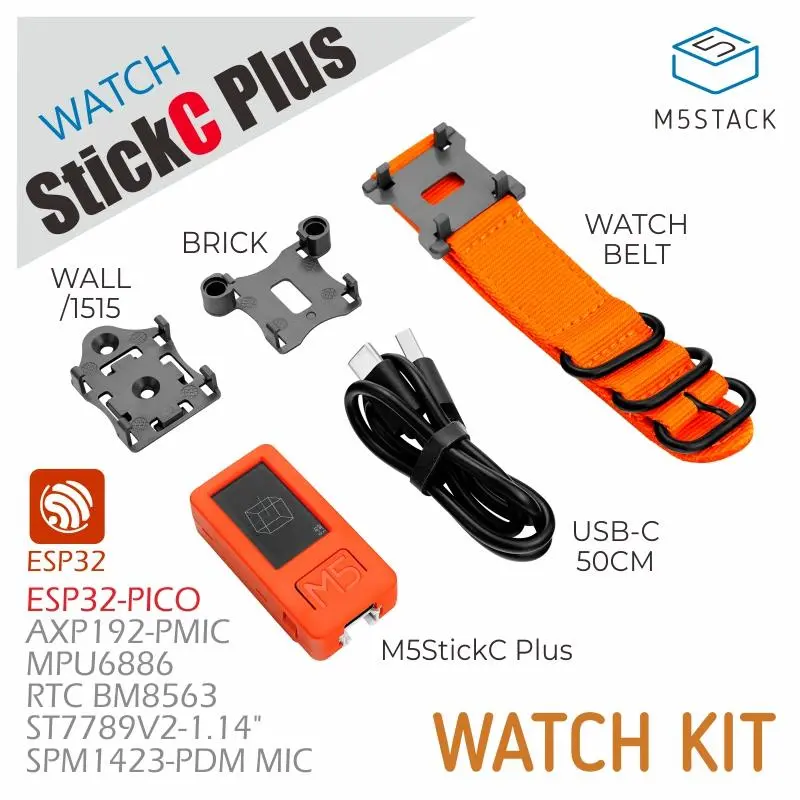

Includes

• 1 x StickC-Plus
• 1 x LEGO adapter
• 1 x Wall/1515
• 1 x Watch strap
• 1 x Type-C USB (50cm)

Applications

• Smartwatch

Specifications

Main Control Resources	Parameters
ESP32	240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash Memory	4MB Flash
Input Voltage	5V @ 500mA
Interfaces	Type-C x 1, GROVE(I2C+I/O+UART) x 1
LCD Screen	1.14 inch, 135 x 240 Colorful TFT LCD, ST7789v2
Microphone	SPM1423
Buttons	Custom buttons x 2
LED	Red LED x 1
RTC	BM8563
PMU	AXP192
Buzzer	Onboard buzzer
IR	Infrared transmission
MEMS	MPU6886
Antenna	2.4G 3D antenna
External Pins	G0, G25/G26, G36, G32, G33
Battery	120 mAh @ 3.7V, inside vb
Strap Size & Weight	230 x 22 x 6mm / 12.3g
Product Size	StickC-Plus: 48.0 x 24.0 x 13.5mm
Product Weight	29.2g
Package Size	126.0 x 67.0 x 22.0mm
Gross Weight	72.5g
