Description

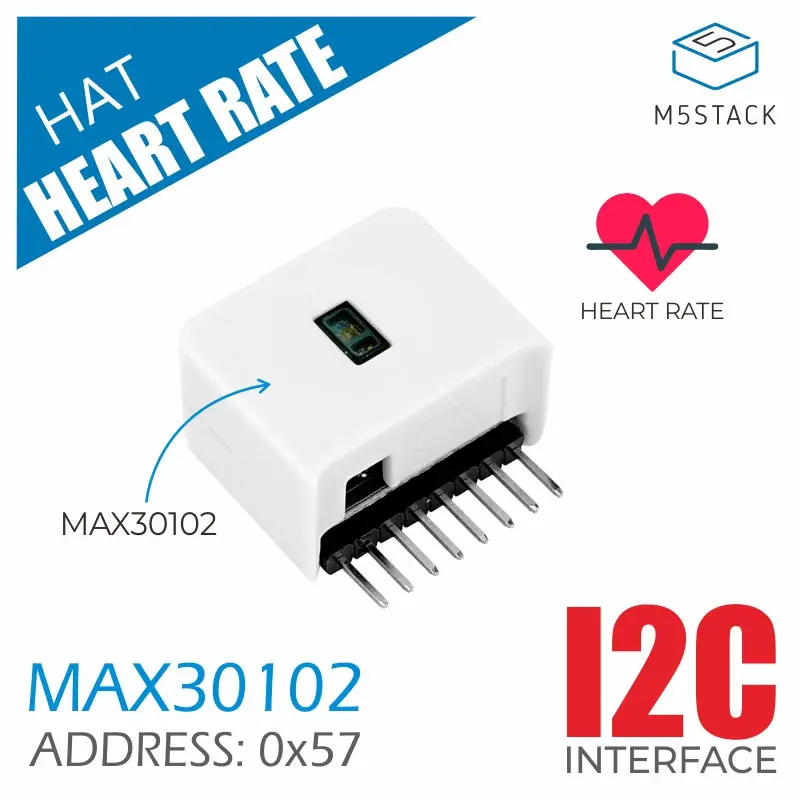

Hat Heart is a blood oxygen and heart rate sensor. It integrates MAX30102, providing a complete pulse oximeter and heart rate sensor system solution. This is a non-invasive blood oxygen and heart rate sensor. Its detection principle is based on infrared LED light illumination, which detects the ratio of oxygenated to deoxygenated red blood cells to determine blood oxygen levels. The sensor uses an I2C communication interface and integrates infrared LEDs, photodetectors, optical components, and low-noise electronics, with some ambient light suppression for more accurate measurements.
Usage: After the program runs, keep your finger stable with constant pressure on the detection area.
Features
- Heart rate monitor and pulse oximeter sensor
- LED reflection solution
- Integrated protective glass, durable performance
- Programmable sampling rate and LED current
- Fast data output capability
- High sampling rate
- Strong motion artifact resilience
- High signal-to-noise ratio
Includes
- 1 x Hat Heart
- 1 x Double-sided adhesive tape
Applications
- Wearable devices
- Heart rate and blood oxygen collectors
- Smart healthcare
Specifications
| Specification | Parameter |
|---|---|
| Sensor Model | MAX30102 |
| Communication Interface | I2C Communication @0x57 |
| Net Weight | 5.1g |
| Gross Weight | 12.7g |
| Product Size | 25 x 24 x 14mm |
| Package Size | 136 x 92 x 14mm |
| Case Material | Plastic (PC) |
