M5Stamp C3 Mate – Pre-Soldered Pin Header Edition

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

Stamp-C3 Mate is an accessory kit for the Stamp-C3 minimal core board. The kit includes the Stamp-C3, along with practical accessories such as female headers, male headers, and HY2.0-4P female connectors, allowing you to quickly integrate the Stamp-C3 into your circuits. The Stamp-C3 is a cost-effective Wi-Fi minimal core board. The module features the ESP32-C3 main control chip, which is equipped with a RISC-V 32-bit single-core processor with a clock frequency of up to 160 MHz. It has 400 KB SRAM + 4MB FLASH and integrates 2.4 GHz Wi-Fi. The core board supports security mechanisms such as secure boot, Flash encryption, and digital signatures. Despite its compact size, it is highly functional and can meet diverse IoT application needs.

Features

• Supports multiple application forms (SMT, DIP, flying leads)
• Comes with high-temperature plastic armor, supports SMT reflow temperature (230°C)
• Includes 5V->3.3V DC/DC circuit, GPIOx13
• Type-C interface
• Programmable RGB LED x1, reset button x1, button x1
• High-performance 3D antenna, providing stable and reliable wireless communication quality
• ESP32 minimal system board
• Development Platform
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

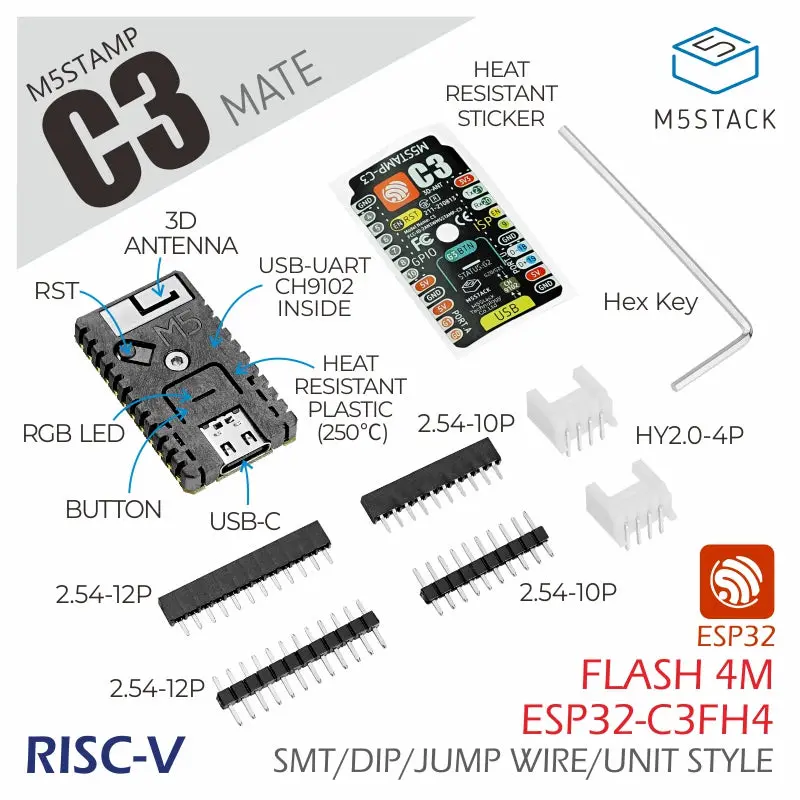

Includes

• 1 x Stamp-C3
• 1 x High-temperature resistant sticker
• 1 x 2.54-12P female header
• 1 x 2.54-12P male header
• 1 x 2.54-10P female header
• 1 x 2.54-10P male header
• 2 x HY2.0-4P female connector (90°)
• 1 x L-shaped 1.5mm hex wrench (compatible with M2 screws)

Applications

Specifications

Specification	Parameter
SoC	ESP32-C3@32-bit RISC-V Single-Core Processor, Main Frequency up to 160MHz
Flash	4MB
SRAM	400KB
ROM	384KB
RTC SRAM	8KB
Wi-Fi	2.4 GHz Wi-Fi (supports 20/40MHz bandwidth, 802.11 b/g/n, up to 150Mbps)
Input Voltage	5V@500mA
Human-Machine Interaction	Programmable Physical Button x 1, Reset/Debug Button x 1, Programmable RGB LED (SK6812) x 1
USB Interface	USB Type-C x 1
Antenna Type	2.4G 3D Antenna
Module Peripheral Interface Resources	ADC, GPIO, SPI, UART, I2C, I2S, PWM, RMT, DMA, USB Serial, TWAI
IO Interfaces x13	G21, G20, G9, G18, G19, G1, G0, G10, G8, G7, G6, G5, G4
IO Interface Pitch	2.54mm
Mounting Screw Specification	M2 x 4 Countersunk Hex Socket Machine Screw
Product Size	34.0 x 20.0 x 4.6mm
Product Weight	4.1g
Package Size	138.0 x 93.0 x 10.0mm
Gross Weight	9.4g
