M5Stack Atom Matrix ESP32 Development Kit (V1.1)

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

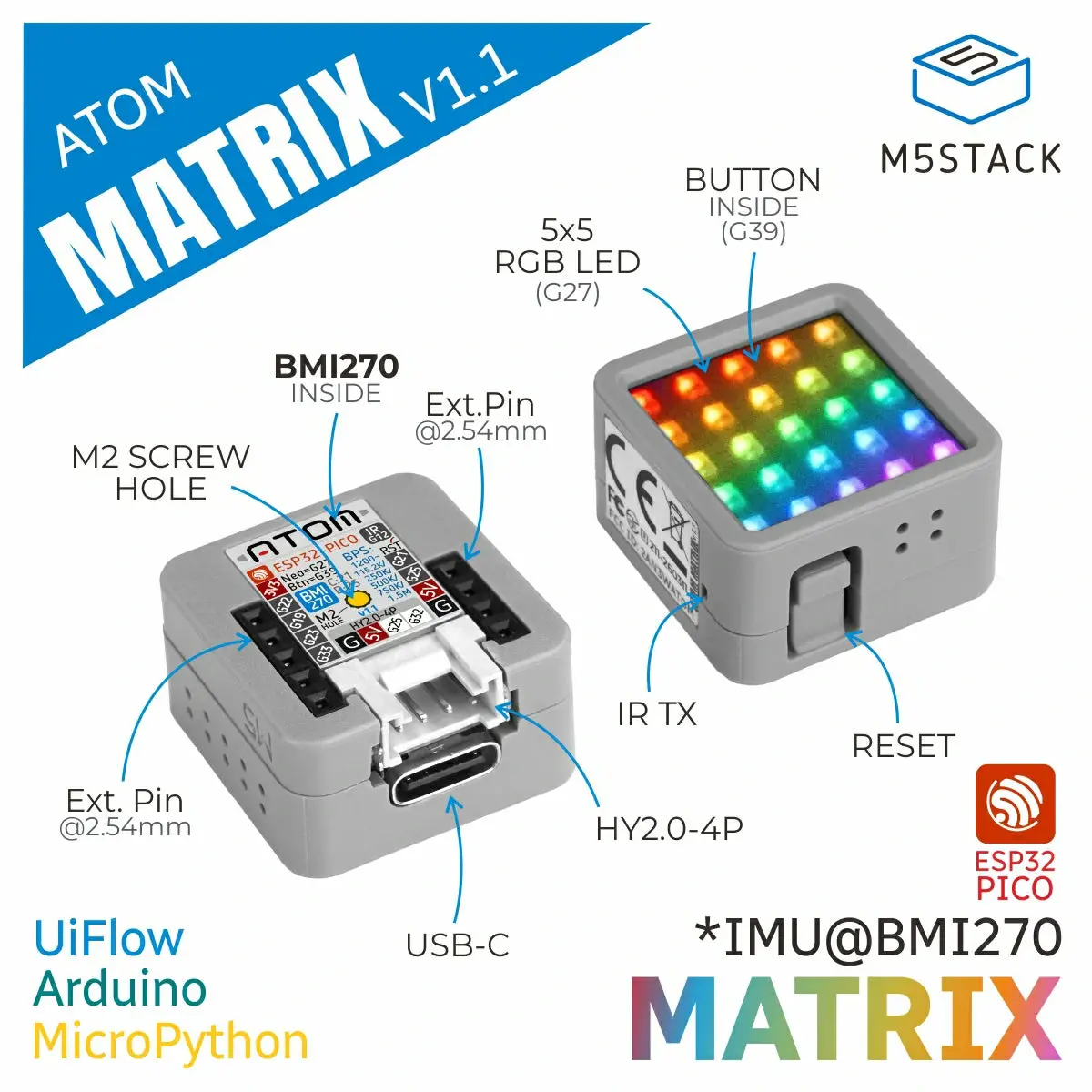

Atom-Matrix v1.1 is an iterative upgrade of the Atom-Matrix. This product replaces the MPU6886 from the previous generation with a BMI270 six-axis IMU sensor, effectively improving attitude detection accuracy and response speed, making it better suited for high-precision applications such as motion capture and attitude control. The main controller adopts the ESP32-PICO-D4 solution with integrated Wi-Fi connectivity and onboard 4 MB SPI flash. It also features an infrared emitter and a 5×5 RGB LED matrix display. A programmable button is located beneath the LED matrix, supporting custom trigger logic for convenient implementation of IR remote control, visual interaction, and command triggering. This product is ideal for embedded development and prototyping scenarios that require high-precision attitude detection, infrared remote control, and visual interactive feedback.

Features

• Based on ESP32
• Compact form factor
• Built-in 3-axis gyroscope and 3-axis accelerometer (I2C Address: 0x68)
• Programmable button
• RGB LED matrix display
• Infrared transmission capability
• Expandable pins and interfaces
• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x Atom-Matrix v1.1

Applications

• Motion-sensing remote controller
• Motion capture / Attitude analysis
• Smart home central control node

Specifications

Specification	Parameter
SoC	ESP32-PICO-D4 @ Dual-core processor, 240MHz
DMIPS	600
SRAM	520KB
Flash	4MB
Wi-Fi	2.4 GHz Wi-Fi
Input Voltage	5V @ 500mA
Host Interface	USB Type-C x 1, Grove (I2C+I/O+UART) x 1
RGB LED	25 x WS2812C-2020
MEMS	BMI270 (I2C Address: 0x68)
Infrared	IR transmission supported
Button	Programmable button x 1
Antenna	2.4G 3D Antenna
Operating Temp.	0 ~ 60°C
Power Consumption	5V @ 61.65mA
Product Size	24.0 x 24.0 x 13.9mm
Product Weight	7.3g
Package Size	85.0 x 66.0 x 15.0mm
Gross Weight	13.5g

Product Comparison

Product Compare	Atom-Matrix v1.1	Atom-Matrix
6-Axis IMU Sensor	BMI270	MPU6886

Learn and Documents
