Description

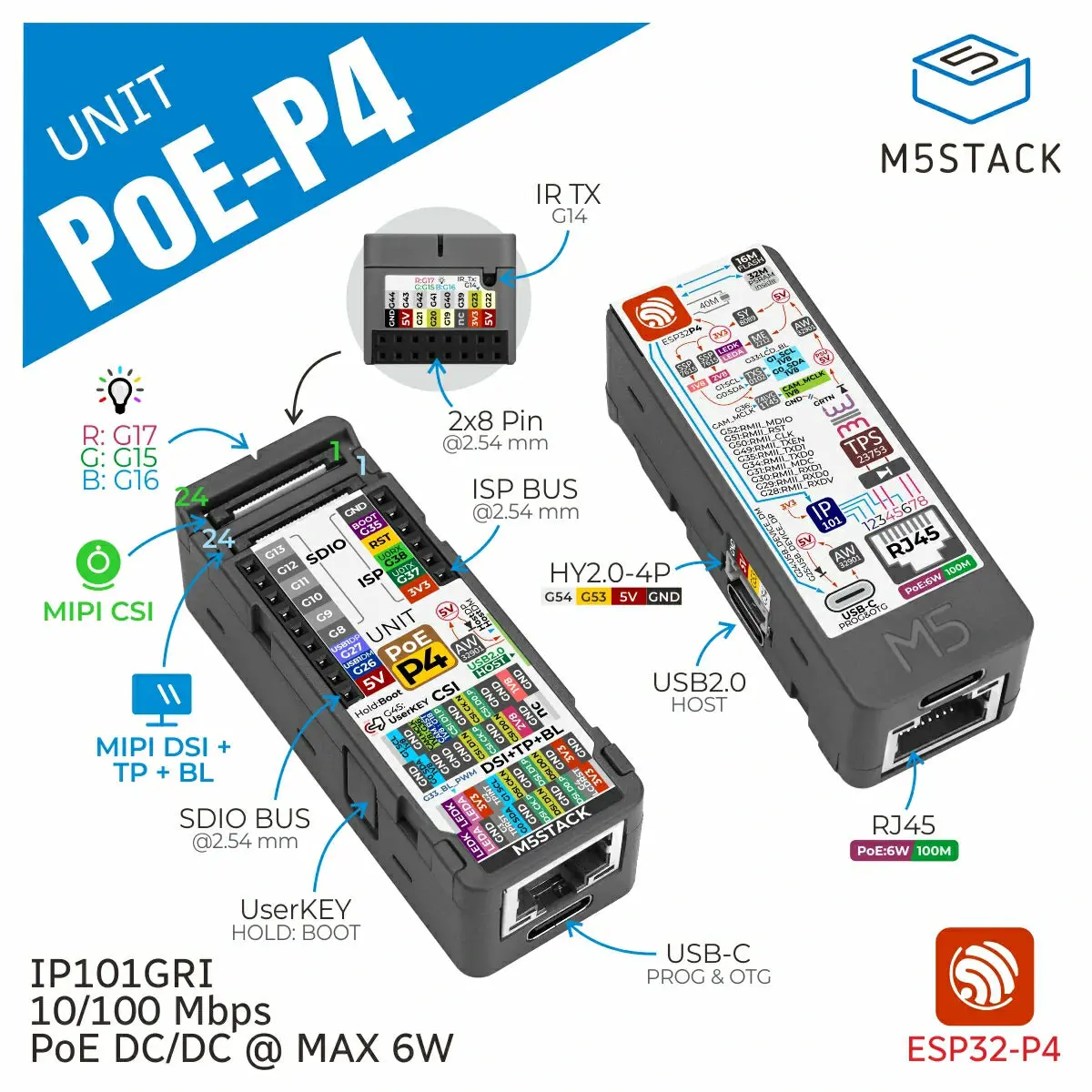

Unit PoE‑P4 is a high‑performance PoE Ethernet embedded controller powered by the ESP32‑P4 SoC (RISC‑V 32‑bit dual‑core @ 360MHz + LP single‑core @ 40MHz). It integrates 16MB Flash and 32MB PSRAM, and features the built‑in IP101GRI Ethernet PHY supporting 10/100 Mbps communication. The device also supports PoE power delivery with a maximum output of 6W, and includes an onboard DC‑DC converter to supply system power, greatly simplifying power wiring in practical applications.
It is equipped with a 24P FPC display expansion interface (MIPI DSI + TP + BL) and a 24P FPC camera interface (MIPI CSI), supporting high‑resolution display output and image capture. For peripheral expansion, it provides one USB Type‑C Host (USB 2.0) port for connecting U disks, HID devices, and other peripherals, plus one USB Type‑C (USB 2.0) port supporting OTG and firmware download for debugging. In addition, it features a Hat expansion interface, SDIO & ISP IO expansion interfaces, and a Grove interface, enabling flexible connection to a wide range of sensors and peripherals.
The device also integrates an RGB indicator LED, an infrared transmitter circuit, and a user button to support status indication, local interaction, and infrared signal transmission. It is ideal for applications such as industrial HMI, PoE smart terminals, vision acquisition nodes, smart home controllers, and edge computing devices.
Features
- ESP32-P4 main controller:
- 16MB Flash + 32MB PSRAM
- Peripheral interfaces:
- 1x 24P FPC camera interface: MIPI CSI 2‑Lane
- 1x 24P FPC display expansion interface: MIPI DSI 2‑Lane + TP + BL
- 1x USB Type‑C Host interface (USB 2.0)
- 1x USB Type‑C firmware download / OTG interface (USB 2.0)
- Ethernet:
- Integrated IP101 10/100M Ethernet PHY chip
- Supports PoE (active Ethernet) power supply, enabling data transmission and power delivery over a single Ethernet cable
- Human‑machine interaction:
- 1x RGB LED indicator
- 1x user button
- 1x infrared transmitter
- Expansion interfaces:
- HY2.0-4P expansion interface
- Hat2-Bus 2.54-16P
- SDIO-Bus 2.56-9P
- ISP-Bus 2.56-6P
Includes
- 1 x Unit PoE-P4
- 1 x HY2.0-4P Grove Cable (20cm)
Applications
- Industrial Human‑Machine Interface (HMI)
- PoE smart terminals
- Vision acquisition nodes
- Smart home controllers
- Edge computing devices
Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32-P4NRW32 (RISC-V 32‑bit high‑performance dual‑core processor @ 360 MHz + RISC‑V 32‑bit low‑power single‑core coprocessor @ 40 MHz) |
| Flash | 16MB |
| PSRAM | 32MB |
| Power Input | DC 5V (USB Type‑C) / PoE |
| Ethernet Controller | IP101GRI |
| Ethernet Speed | 10/100M adaptive |
| Ethernet Interface | RJ45 |
| PoE Standard | Compliant with IEEE 802.3at |
| PoE Power | Maximum power 6W |
| Display Interface | 24P FPC MIPI DSI 2‑Lane + TP + BL |
| Display Resolution | MIPI DSI display supports up to 1920×1080 (limited by lane count and frame rate) |
| Camera Interface | 24P FPC MIPI CSI 2‑Lane |
| USB Type‑C | 1x USB Type‑C Host interface (USB 2.0) 1x USB Type‑C firmware download / OTG interface (USB 2.0) |
| Power Consumption | Operating current: 5V @ 73.82mA Infrared transmission: 3.3V @ 23.57mA (instantaneous) RGB: 5V @ 75.32mA Full load (display, camera, IR, RGB, etc.): 277.10mA Deep sleep: 5V @ 19.85mA |
| RGB LED | 1 x NH-B2020RGBA-HF |
| Infrared Transmitter | 1 x MHS153IRCT |
| Operating Temperature | 0 ~ 40°C |
| Product Size | 64.0 x 24.0 x 20.2mm |
| Product Weight | 28.2g |
| Package Size | 65.0 x 33.0 x 21.2mm |
| Gross Weight | 35.0g |
