EOL UnitV K210 AI Vision Camera with OV2640 Sensor for Edge Computing

Description

Product Status Notice This product is EOL (End of Life). Please order the new version: UnitV-OV7740 /* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

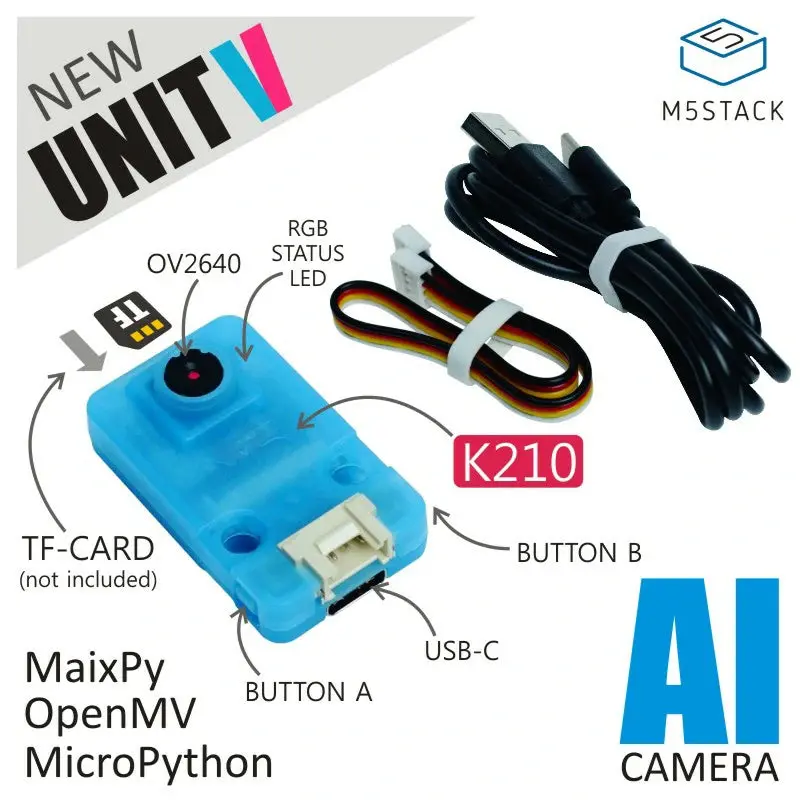

UnitV-OV2640 is an AI vision processing camera unit equipped with the Kendryte K210, integrating a dual-core 64-bit RISC-V CPU and a neural network processor edge computing system-on-chip. The UnitV-OV2640 AI camera is very compact, making it suitable for embedding into various devices. It has machine vision processing capabilities, supports multiple image recognition functions (such as real-time acquisition of the size and coordinates of detected objects, and real-time acquisition of the types of detected objects), and can perform convolutional neural network calculations under low power consumption. Therefore, UnitV-OV2640 is an excellent zero-threshold machine vision embedded solution. It supports the MicroPython development environment, making your project development code more concise. Equipped with the OV2640 2-megapixel image sensor, it is an ideal choice for machine vision projects. The body features two programmable buttons and a front-facing RGB LED indicator for easy status display. The bottom provides a HY2.0-4P compatible interface and a TYPE-C interface for connecting to the main control device. It supports TF card expansion for easier access to related materials and model files.

Features

• Dual-core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz (Normal)
• Double-precision FPU
• 8MiB 64-bit on-chip SRAM
• Neural Network Processor (KPU) / 0.8Tops
• Programmable I/O Array (FPIOA)
• AES, SHA256 Accelerator
• Direct Memory Access Controller (DMAC)
• Supports MicroPython
• Firmware encryption support
• On-board hardware resources:
  • Flash: 16M
  • Camera: OV2640
  • Buttons: 2
  • Status LED: WS2812 LED
  • Expansion card interface: TF card/microSD
  • Interface: HY2.0/compatible GROVE

Includes

• 1 x UnitV-OV2640
• 1 x HY2.0-4P Grove cable (20cm)
• 1 x USB Type-C cable (1m)

Applications

• Object detection/classification
• Real-time acquisition of target size and coordinates
• Real-time acquisition of detected target types
• Shape recognition
• Video recording

Specifications

Specification	Parameters
Kendryte K210	Dual-core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz (Normal)
SRAM	8Mbit
Flash	16M
Input voltage	5V @ 500mA
KPU Neural Network Size	5.5MiB-5.9MiB
Interface	Type-C x 1, HY2.0-4P (I2C+I/O+UART) x 1
RGB LED	WS2812 x 1
Buttons	Custom buttons x 2
Camera	OV2640
FOV	65°
External storage	TF Card/microSD
Net weight	8g
Gross weight	45g
Product Size	40 x 24 x 13mm
Package Size	70 x 50 x 30mm
Casing material	Plastic (PC)
