End-of-Life Atom NB-IoT DTU Development Kit with SIM7020G – Global Version

Description

Product Status Notice This product is EOL (End of Life). Please order the new version: ATOM DTU NB-IoT2 Kit /* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

Atom DTU NBIoT is a programmable data transmission unit (DTU) integrated with NB-IoT communication functionality. It features a built-in SIM7020G module, covering most Cat-NB frequency bands, and includes an SMA external antenna interface to enhance communication quality and signal stability. Unlike conventional DTUs that only support data passthrough, the Atom DTU NBIoT series adopts a more open architecture design. The Atom-Lite controller allows users to modify the program according to actual business needs. The device is equipped with multiple interfaces (RS485, I2C, custom interfaces) for user expansion, facilitating quick integration of sensors and actuators. It also comes with a rail mounting structure, making it easy to embed into various industrial control environments. Atom DTU NBIoT is ideal for applications requiring low latency and low throughput, such as remote control, asset tracking, remote monitoring, telemedicine, and shared bikes.

Features

• SIM7020G/Global version/Multi-band support
• RS485 communication interface (with 12V input, internally integrated DC-DC step-down to 5V)
• Modbus Master/Slave
• Strong signal reception capability
• AT command control
• SIM card type: MicroSIM
• External antenna: SMA antenna interface
• Grove expansion interfaces:
  • I2C x1
  • Custom x1
• Serial communication: UART 115200bps
• Built-in rail mounting
• Cat-NB frequency bands:
  • B1/B2/B3/B4/B5/B8/ B12/B13/B17/B18/B19/ B20/B25/B26/B28/ B66/B70/B71/B85
• Data transmission (kbps):
  • 126(DL)/150(UL)
• Network protocols:
  • TCP/UDP/HTTP/HTTPS/ TLS/DTLS/DNS/NTP/ PING/LWM2M/COAP/ MQTT/MQTTS

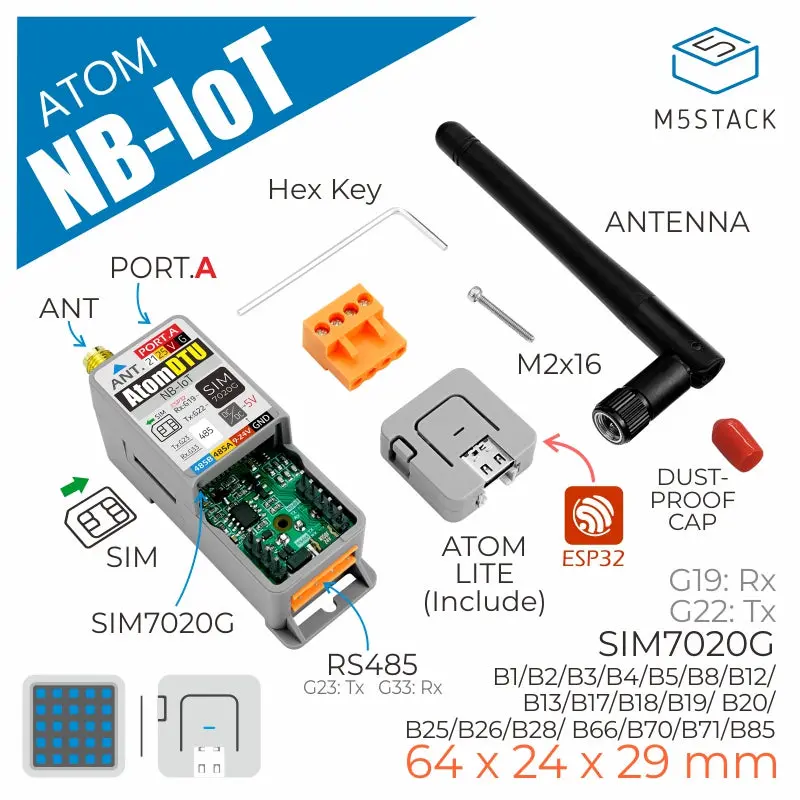

Includes

• 1 x Atom-Lite
• 1 x Atomic DTU NBIoT Base
• 1 x SMA antenna
• 1 x SMA red cap
• 1 x M2 hex wrench
• 1 x M2x16 screw
• 1 x HT3.96-4P terminal

Applications

• Smart metering
• Remote monitoring
• Shared bikes

Specifications
