EC10E1220501 Hollow Shaft Encoder Scroll Unit

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

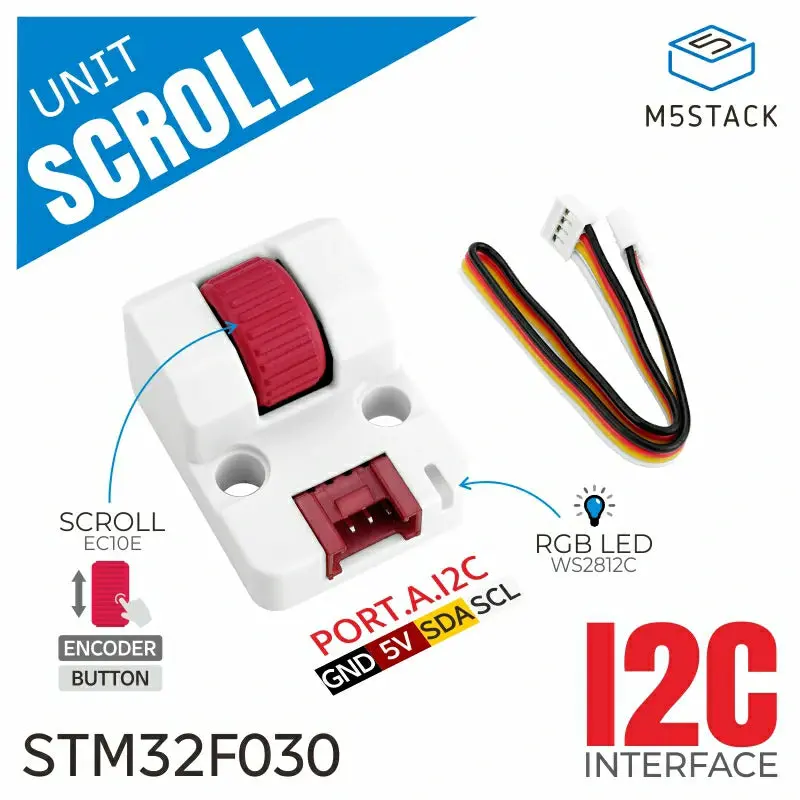

Unit Scroll is a wheel-shaped rotary encoder expansion unit. It integrates a 12-bit pulse through-shaft encoder, button input, and a WS2812C programmable RGB LED. The built-in STM32F030 controller includes firmware for encoder pulse signal acquisition, allowing users to directly obtain encoder values through I2C, greatly simplifying the operation process. This unit is suitable for control scenarios such as scale value control and volume adjustment.

Features

• Based on STM32 microcontroller
• AB phase output (12 pulses/rotation)
• Built-in button
• Multi-color WS2812C RGB LED indicator
• I2C communication interface

Includes

• 1 x Unit Scroll
• 1 x HY2.0-4P Grove cable (20cm)

Applications

• Industrial automation
• Smart home
• Robotics
• Human-machine interaction

Specifications

Specification	Parameter
MCU	STM32F030F4P6@32-bit ARM Cortex-M0 processor
Rotary Encoder	EC10E
Rotary Encoder Output	AB two-phase quadrature output
Rotary Encoder Pulses	12 pulses/rotation
RGB LED	1x WS2812C
Button	1x button
I2C Communication Address	0x40
Operating Temperature	0 ~ 40°C
Product Size	32.0 x 24.0 x 18.9mm
Product Weight	7.5g
Package Size	138.0 x 93.0 x 19.9mm
Gross Weight	12.7g

Product Comparison

Product Compare	Unit Scroll	Unit Encoder	Unit 8Encoder
Form	Wheel	Knob	Knob
Channels	1	1	8
Resolution	12 pulses/rotation	30 pulses/rotation	15 pulses/rotation
Position	AB Quadrature Output	AB Quadrature Output	AB Quadrature Output
Communication Mode	I2C (0x40)	I2C (0x40)	I2C (0x41)
