BT136S Solid State Relay Module

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

Unit SSR is a solid-state relay integrated with MOC3043M optocoupler isolation and zero-crossing detection. It supports a 3.3-5V DC control signal to control a single-phase 220-250V AC power output. Combined with the M5 controller and the UIFlow programming platform, it can easily achieve remote control. Compared to ordinary mechanical relays, this solid-state relay uses power semiconductor devices for control, offering microsecond-level switching speed and built-in overcurrent protection. It has no physical contacts, long lifespan, high reliability, and can adapt to complex working environments such as severe vibrations. It is used in scenarios requiring frequent switching and fast response, such as lighting control and CNC machine tools.

Note 1. Be cautious when using high-voltage AC loads; do not operate with power on.
2. This relay is only suitable for AC loads.

Features

• Zero-crossing SSR
• Built-in overcurrent protection
• Built-in optocoupler isolation with zero-crossing detection
• Fast speed, low noise, long lifespan, high reliability, and high sensitivity
• Uses GROVE interface for easier connection
• Supports UIFlow graphical programming, enabling remote control of the relay with an M5 controller in just 3 minutes

Advantages of Solid-State Relays over Mechanical Relays: 1. Faster switching speed with no physical contact wear.
2. Completely silent operation.
3. No electrical sparks, suitable for complex environments.
4. Longer lifespan.
5. Smaller size.

Includes

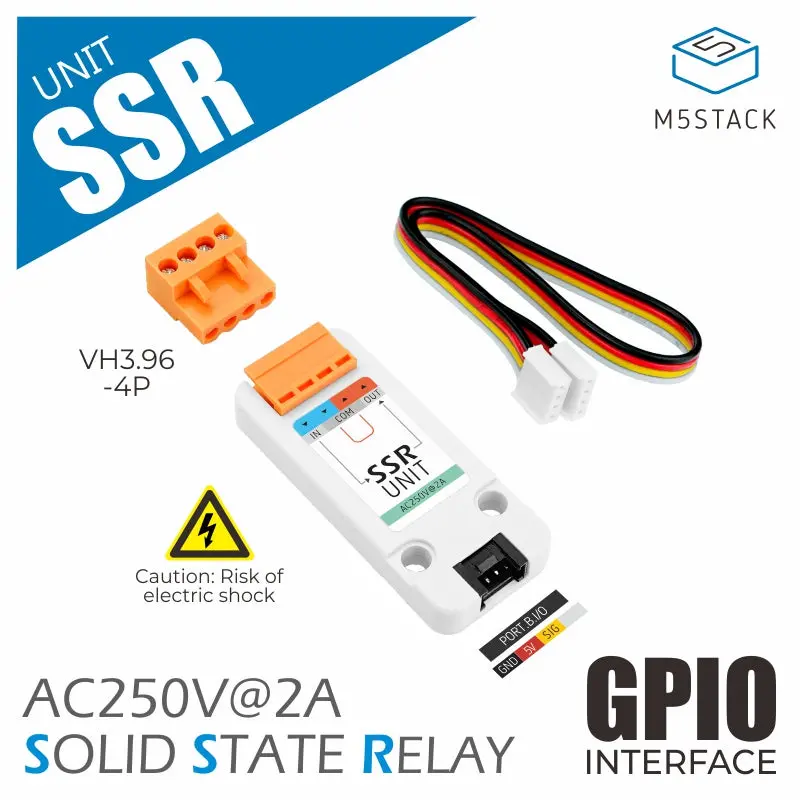

• 1 x Unit SSR
• 1 x HY2.0-4P Grove cable (20cm)
• 1 x VH3.96-4P Terminal

Applications

• Motor control
• Industrial and household lighting
• Heating and static switching
• Stage lighting
• Medical equipment, traffic lights

Specifications

Specification	Parameter
Thyristor Model	BT136S
Optocoupler Model	MOC3043
Control Signal	3.3-5V DC
Switching Voltage	Single-phase AC: 220-250V
Maximum Load Current	2A
Control Channels	1
Overcurrent Protection	Fuse: 2A
Operating Temperature	-10 ~ 80°C
Product Size	56.0 x 24.0 x 10.2mm
Product Weight	8.3g
Package Size	138.0 x 93.0 x 11.2mm
Gross Weight	16.5g
