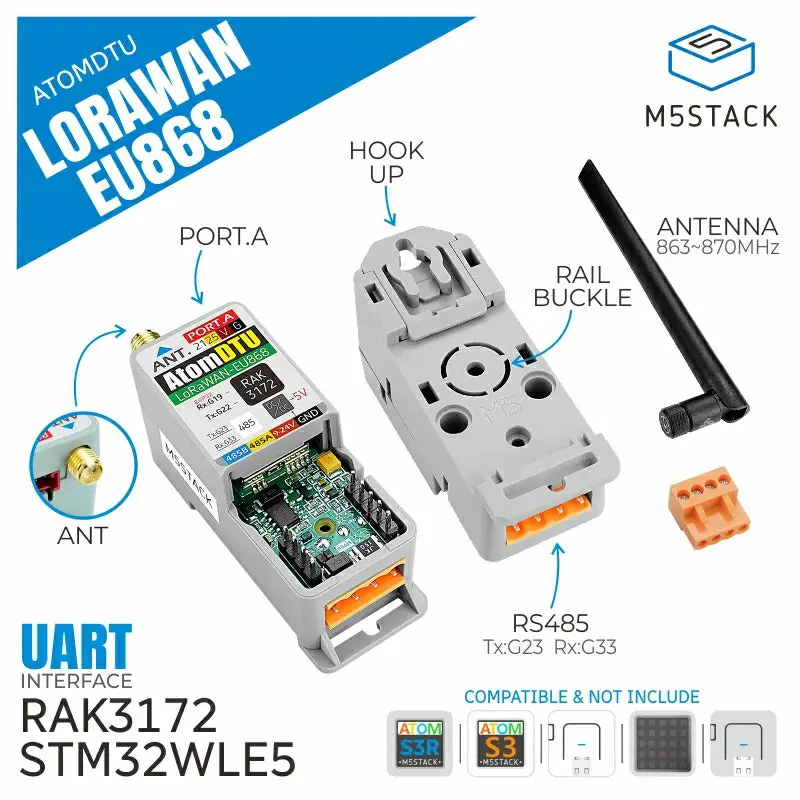

Atomic LoRaWAN DTU Gateway for EU868 Band with STM32WLE5CC

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

Atom DTU LoRaWAN-EU868 is a LoRaWAN programmable data transmission unit (DTU) designed for the 868 MHz frequency band, specifically tailored for the EU868 band, suitable for Europe and other regions using the EU868 band. This module employs the STM32WLE5 solution, supporting long‑range communication with low power consumption and high sensitivity. The module features a built‑in LoRaWAN protocol stack, supporting Class A, Class B and Class C operation modes for easy connection to various LoRaWAN server platforms such as TTN, ChirpStack, Actility, Tencent Cloud, etc.; it also supports LoRa® point‑to‑point (P2P) communication mode and uses a UART communication interface (controlled via the AT command set) for flexible configuration, and integrates an RS485 communication interface to provide reliable wired connectivity for industrial field devices. The product uses a high‑performance rubber‑duck antenna, with an optimized design to deliver more stable signal coverage and longer communication range, suitable for a variety of complex environments. In LoRaWAN mode, the module can act as a node to connect to a gateway for data collection and management; in P2P mode, it can achieve direct device‑to‑device communication without a gateway. Structurally, the module features a standard 35 mm DIN rail slot at its base, allowing direct installation on industrial rails for quick deployment and maintenance in cabinets or distribution boxes. It is designed for long‑range, low‑power IoT communication scenarios such as smart agriculture, industrial monitoring, and environmental monitoring node deployments.

Features

• Complies with LoRaWAN® 1.0.3 protocol
• Supports 868 – 870 MHz band
• Supports LoRa® P2P (point-to-point) communication
• LoRaWAN activation modes: OTAA, ABP
• Serial communication (AT commands)
• RS485 communication
• High-sensitivity stick antenna
• Low power consumption
• LEGO-compatible mounting holes
• DIN rail mounting design
• Development platforms:
  • UiFlow1
  • UiFlow2
  • Arduino IDE

Includes

• 1 × Atom DTU LoRaWAN-EU868
• 1 × Stick antenna (@0.5 dBi, total length 195 mm, SMA male)
• 1 × HT3.96-4P wiring terminal

Applications

• Smart agriculture
• Industrial monitoring
• Environmental monitoring node deployment

Specifications
