ADS1115 High-Resolution Digital Voltmeter Module

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

Unit VMeter is a voltage sensor capable of real-time voltage monitoring. It uses a 16-bit ADC converter ADS1115 and communicates via I2C (0x49). To ensure measurement accuracy, a built-in DC/DC isolated power supply is provided, and the I2C interface is electrically isolated using a low-power isolator CA-IS3020S. This prevents noise and surges from the data bus or other circuits from entering the local ground terminal and interfering with or damaging sensitive circuits. Each Unit VMeter is individually calibrated before leaving the factory, with a maximum measurement voltage of ±36V, an accuracy of 1% of full scale, ±1 digit.

Calibration Parameters The EEPROM (0x53) has built-in calibration parameters from the factory. Do not write to the EEPROM, otherwise the calibration data will be overwritten, resulting in inaccurate measurement results.

Features

• ±36V range
• 16-bit ADC conversion
• Resolution: 1mV at ≤16V, 7.9mV above 16V
• Accuracy: 1% of full scale, ±1 digit
• LED power indicator
• No recalibration required (EEPROM pre-written at factory)
• Built-in CA-IS3020S isolation chip for anti-interference
• Isolated DC-DC
• Isolation withstand voltage up to 1000 VRMS
• Development Platforms: Arduino, UiFlow (Blockly, Python)
• 2 x LEGO compatible holes

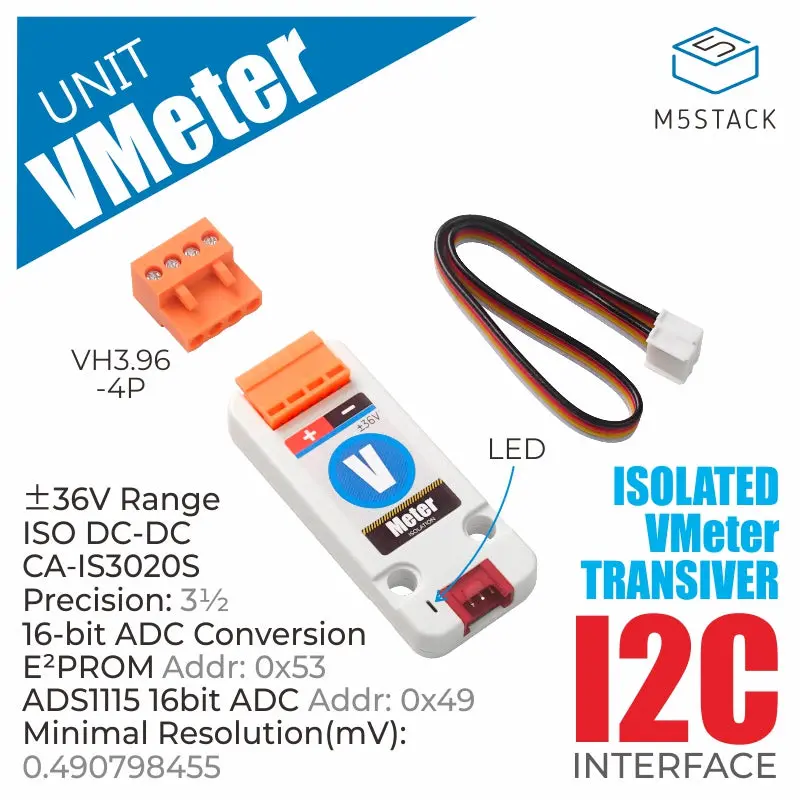

Includes

• 1 x Unit VMeter
• 1 x HY2.0-4P Grove Cable (20cm)
• 1 x VH3.96-4P Terminal

Applications

• Voltmeter

Specifications

Specification	Parameter
Resolution	7.9mV @ 16V reading
Measurement Range	±36V
Communication Interface	I2C Communication @0x49
Product Size	56.0 x 24.0 x 8.0mm
Product Weight	8.2g
Package Size	138.0 x 93.0 x 9.0mm
Gross Weight	16.5g
