24 AWG 4-Core STP Cable

Description

/* ===== Scoped Description Style ===== */.product-description.rte { font-family: -apple-system, BlinkMacSystemFont, “Segoe UI”, Roboto, “Helvetica Neue”, Arial, sans-serif; color: #2c2c2c; line-height: 1.65; font-size: 16px;}/* ===== Headings ===== */.product-description.rte h2 { font-size: 1.8em; color: #0D47A1; border-left: 4px solid #1f6fe5; padding-left: 12px; margin-top: 32px; margin-bottom: 16px;}/* ===== H3 Titles Optimization ===== */.product-description.rte h3 { font-size: 1.4em; color: #0D47A1; margin-top: 24px; margin-bottom: 12px; font-weight: 500; padding-bottom: 6px; border-bottom: 2px solid #e6e6e6;}/* ===== Paragraphs ===== */.product-description.rte p { margin-bottom: 20px; line-height: 1.8; color: #4a4f57; font-size: 16px;}/* ===== Paragraph Images (only in description) ===== */.product-description.rte img { display: block; max-width: 100%; height: auto; margin: 24px auto; border-radius: 12px; box-shadow: 0 8px 24px rgba(0, 0, 0, 0.06);}/* ===== Lists ===== */.product-description.rte ul { padding-left: 20px; margin-bottom: 16px; list-style-type: disc;}.product-description.rte li { margin-bottom: 6px;}/* ===== Links ===== */.product-description.rte a { color: #0288D1; text-decoration: none; transition: color 0.3s ease;}.product-description.rte a:hover { color: #01579B;}/* ===== M5Stack-style Spec Table ===== */.product-description.rte .table-container { width: 100%; margin: 24px 0; overflow-x: auto;}.product-description.rte .table-container table { width: 100%; border-collapse: collapse; font-family: inherit; font-size: 14px; color: #2c2f36; background-color: #ffffff; border-radius: 10px; overflow: hidden; box-shadow: 0 4px 12px rgba(0, 0, 0, 0.04);}.product-description.rte .table-container thead th { background: #1f6fe5; color: #ffffff; padding: 14px 16px; text-align: center; font-weight: 600; border: none; vertical-align: middle;}.product-description.rte .table-container td { padding: 14px 16px; border-bottom: 1px solid #e6ebf2; vertical-align: middle;}.product-description.rte .table-container tbody td:first-child { width: 36%; text-align: center; font-weight: 500; color: #4a4f57; background-color: rgba(31, 111, 229, 0.02);}.product-description.rte .table-container tbody tr:nth-child(even) { background-color: #f7f9fc;}@media (hover: hover) { .product-description.rte .table-container tbody tr:hover { background-color: #eef3ff; }}/* ===== Learn & Documents Button ===== */.product-description.rte #learn-and-documents-btn { display: inline-flex; align-items: center; padding: 6px 14px; background-color: #1f6fe5; color: #ffffff; font-weight: 600; border-radius: 6px; margin-top: 8px; text-decoration: none; transition: background 0.3s ease;}.product-description.rte #learn-and-documents-btn:hover { background-color: #1661c1;}/* ===== Responsive Design for Smaller Screens (with table adjustments) ===== */@media screen and (max-width: 768px) { .product-description.rte .table-container table, .product-description.rte .table-container thead, .product-description.rte .table-container tbody, .product-description.rte .table-container th, .product-description.rte .table-container td, .product-description.rte .table-container tr { display: block; width: 100%; } .product-description.rte .table-container thead { display: none; } .product-description.rte .table-container tbody tr { padding: 12px 0; border-bottom: 1px solid #e6ebf2; } .product-description.rte .table-container tbody td { padding: 8px 16px; border: none; text-align: left; } .product-description.rte .table-container tbody td:first-child { width: 100%; background: none; color: #1f6fe5; font-weight: 600; padding-top: 16px; } .product-description.rte .table-container tbody td:last-child { padding-bottom: 16px; color: #2c2f36; line-height: 1.6; } /* Ensure button appears correctly on mobile */ .product-description.rte #learn-and-documents-btn { font-size: 14px; padding: 8px 16px; }}

Description

Shielded Twisted Pair Cable is a shielded twisted-pair cable commonly used for building data communication lines. The internal aluminum foil and braided layers effectively reduce signal interference and enhance the stability of communication lines. It is suitable for general serial communication as well as RS485, RS232, CAN and other standard communication buses.

Features

• Electrical Characteristics
  • Operating Voltage: 2.5 ~ 9V
  • Operating Current: <1800mA
  • Loop Voltage Drop: <0.5V
  • Contact Resistance: 5mΩ
  • Rated Contact Current: 1.8A
  • Dielectric Withstanding Voltage: AC 250V
  • Data Transfer Rate: ≥ 425 Mb/s
• Environmental Requirements
  • Operating Temperature: -10 ℃ ~ +50 ℃
  • Storage Temperature: -10 ℃ ~ +35 ℃
  • Operating Humidity: <55 %
  • Humidity Range: 25 % R.H ~ 90 % R.H
• Cable Description
  • 24 AWG
  • Conductor: (11/0.16 + 4C), bare copper + aluminum foil + braid
  • Insulation: TPE OD = 0.90 ± 0.05 mm, core colors: black, yellow, green, red
  • Cable Outer Diameter: 5.0 mm
  • Each core made of bare copper strands
  • Jacket: TPE, black, OD: 5.0 mm
  • Cable, plug and mechanical requirements: MAX; Contact Pull-out Force: ≥ 50 g

Includes

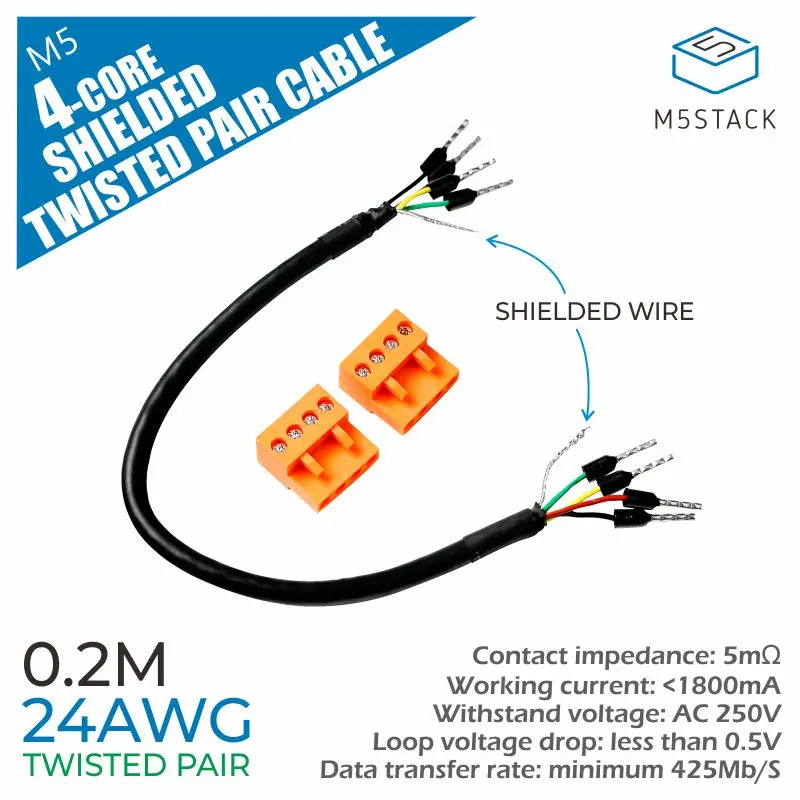

• A088: Shielded Twisted Pair Cable (1pcs 0.2m) + I/O Sticker (2pcs) + HT3.96-4P Terminal (2pcs)

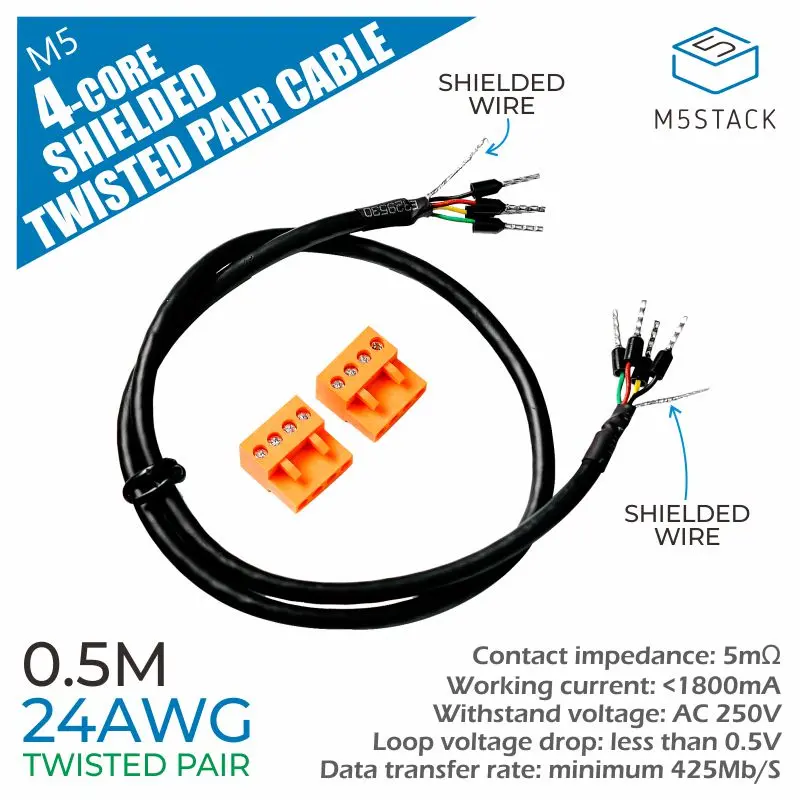

• A088-A: Shielded Twisted Pair Cable (1pcs 0.5m) + I/O Sticker (2pcs) + HT3.96-4P Terminal (2pcs)

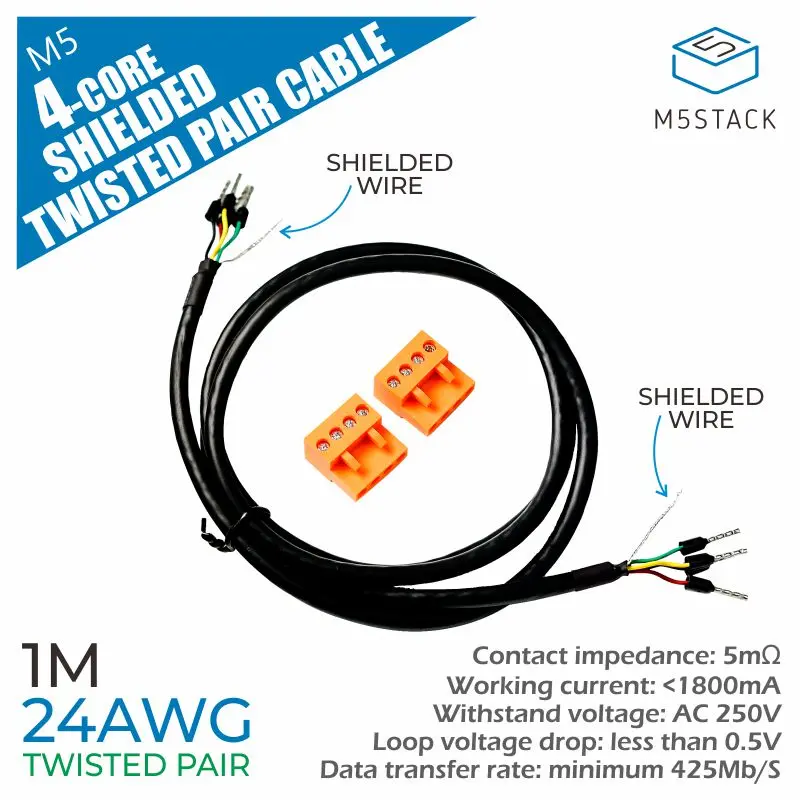

• A088-B: Shielded Twisted Pair Cable (1pcs 1m) + I/O Sticker (2pcs) + HT3.96-4P Terminal (2pcs)

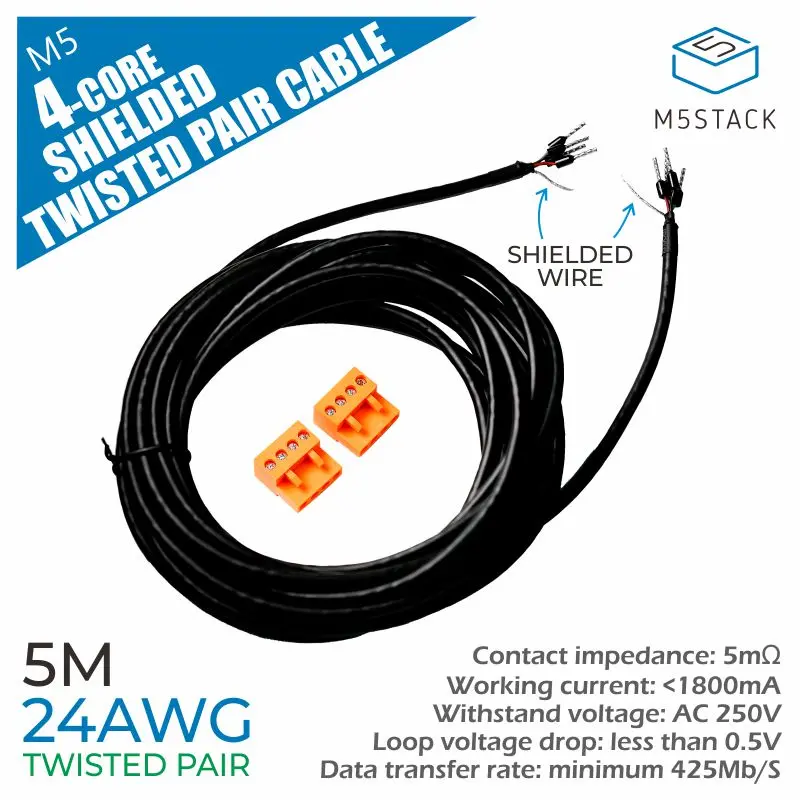

• A088-C: Shielded Twisted Pair Cable (1pcs 5m) + I/O Sticker (2pcs) + HT3.96-4P Terminal (2pcs)

Applications

• Building communication lines

Specifications
