Description

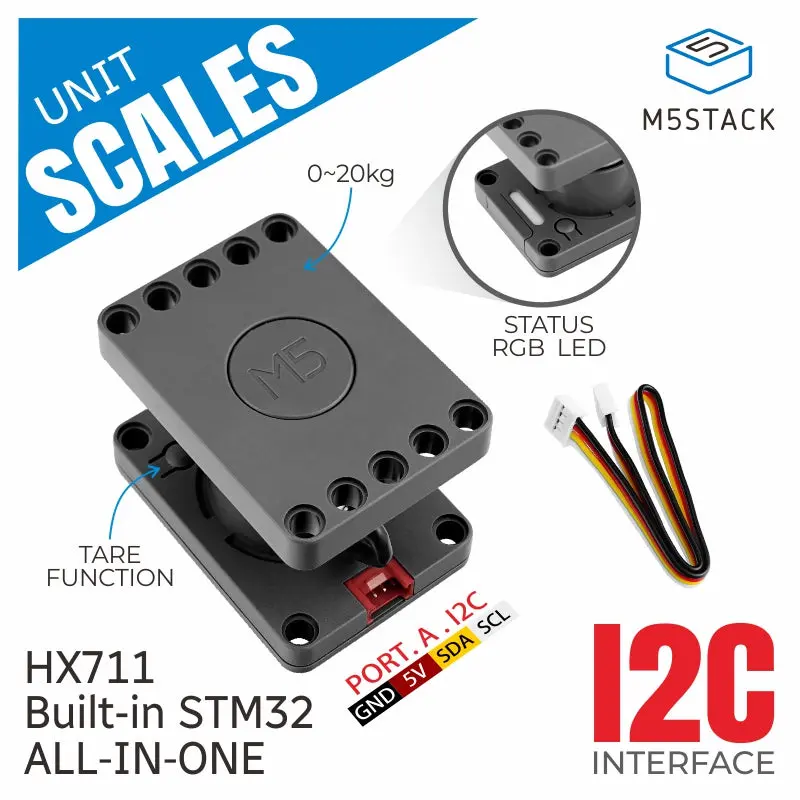

Unit Scales is a 20 kg integrated weighing sensor unit with an I2C interface. It integrates an STM32F030 microcontroller, acquisition circuit, and a 20 kg weighing sensor internally. The unit uses the HX711 dedicated weighing acquisition chip, features a tare button, and a programmable RGB status indicator. Users can read weight data via the I2C interface. This unit provides a highly integrated weighing detection solution, suitable for applications such as quality inspection, piece counting, and object movement detection.

Features

• HX711:
  • High-precision 24-bit ADC
  • Programmable gain amplification of 32, 64, and 128
  • 10SPS output data rate
• I2C interface
• Development platforms: Arduino, UIFlow (Blockly, Python)

Includes

• 1 x Unit Scales
• 1 x HY2.0-4P Grove cable (20cm)

Applications

• Smart scales
• Kitchen scales
• Item counting devices
• Human presence detection

Specifications
